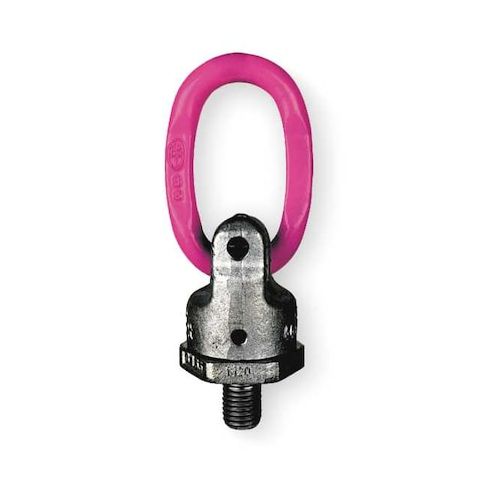

Hoist Ring, 180 Pivot, 5500 lb.Load Cap. MPN:7989081
Hoist Ring, 180 Pivot, 5500 lb.Load Cap.
The Rud Chain Hoist Ring is a heavy-duty lifting solution designed for demanding applications. With a 5,500 lb load capacity and 360-degree swivel, this pivot ring offers flexibility and versatility in lifting operations. Its steel construction and powder-coated finish ensure durability and resistance to corrosion. The ring's compact design and screw-on mounting make it easy to install and integrate into existing systems. Ideal for industries such as construction, manufacturing, and logistics, the Hoist Ring is a reliable and efficient solution for lifting heavy loads with precision and control.
Top product features:
- Pivot Angle of 230 Degrees
- Swivel Angle of 360 Degrees
- Load Capacity of 5500 lb
Top product applications:
- Construction
- Industrial lifting and rigging
- Heavy equipment operation
Hoist Ring, Movement Type Pivot, Swivel, Material Steel, Mount Type Screw-On, Working Load Limit 5,500 lb, Thread Size M20-2.5, Operation Lifting, Pivot Angle 230 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 1/4 in, Bail Inside Length 3 in, Bail Inside Width 1 5/8 in, Bail Thickness 1/2 in, Overall Length 2 1/8 in, Overall Width 2 3/8 in, Hardware Included Not Applicable, Minimum Installation Torque 51.6 ft-lb, Finish Powder Coated, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 6.00
- Package Height: 2.00
- Package Weight: 2.58
Product info last updated on February 24, 2026 4:46pm UTC
Category: Lifting, Pulling and Positioning
