External-E E-Clip, Steel, Zinc Yellow Finish, 100 PK MPN:SE-21ST ZD
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2062837

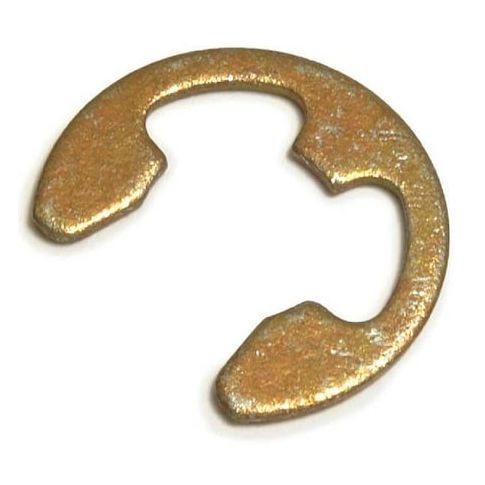

External-E E-Clip, Steel, Zinc Yellow Finish, 100 PK
The Rotor Clip External-E E-Clip is a high-quality steel retaining ring designed for external applications. With a zinc yellow finish and 0.025 inch thickness, it provides reliable protection and retention for shafts with a diameter of 7/32 inch. This E-style retaining ring is ideal for use in a variety of industries, including automotive, aerospace, and manufacturing. Its durable construction and precise fit ensure long-lasting performance and prevent damage to surrounding components. The External-E E-Clip is available in a pack of 100, making it an economical solution for bulk applications. Its lead time is just one day.
Top product features:
- Retains components in place on a shaft with a diameter of 7/32 in
- Holds components securely in an external location
- Constructed of steel with a zinc yellow finish for corrosion resistance
Top product applications:
- Machine parts assembly
- Shaft sealing
- Mechanical engineering applications
E Style Retaining Ring,0.025 In. Thk,PK100, System of Measurement Inch, Location Style External, Thickness 0.025 in, Fits Shaft Diameter 7/32 in, For Bore Diameter Not Applicable, Fits Groove Diameter 0.188 in, Fits Groove Width 0.029 in, Fits Groove Depth 0.015 in, Free Inside Diameter 0.185 in, Free Outside Diameter 0.437 in, Clearance Diameter 0.437 in, Material Steel, Finish Zinc Plated, Material Grade/Class Ungraded, Tensile Strength 120,000 psi, Ring Type E-Style Retaining Ring
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.00
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.05
Product info last updated on March 6, 2026 2:59pm UTC
Category: Retaining Rings
