Pipe Threading and Cutting Machines, 1/2 in to 2 in, Rod: No Rod Bolt: 1/4 in to 1-1/2 in MPN:63005

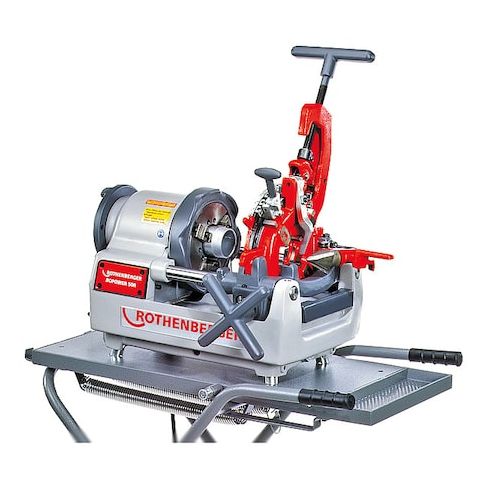

• The ROTHENBERGER 63005 is a power threading machine for stationary operation. It is equipped with an oil feed pump system with a 0.5-gallon oil capacity (through-the-head oiling) for cutting/forming NPT threads on specified pipe and bolt sizes. It accommodates pipe sizes from 1/2 in to 2 in and bolt sizes from 1/4 in to 1-1/2 in. It includes die sets for NPT threading and a stand for secure mounting. It includes an on/off toggle switch and a safety foot switch.

  Key Features:


  • - Motor Power: 1 hp with a power output of 1,150 W
  • - Speed: Single speed at 40 RPM
  • - Capacity: threads pipes from 1/2 in to 2 in and threads bolts from 1/4 in to 1-1/2 in
  • - Chuck Type: Hammer type with cam action rear
  • - Includes (2) die sets, die head, stand, 1 gallon ROCOOL oil, and safety foot switch
  • - Features ball detent dies, dual-sided tool guide, and includes a deburring blade
  • - Dimensions: 21 in length x 17 in width
  • Weight: 195 lb
  • - Powered by corded 120 V single-phase electricity with 10 A current and 60 Hz frequency
  • - Certified/certification marked by CSA and UL
