Sheave, Wire Rope, 3/16 in Max Cable Size, 830 lb Max Load, Natural MPN:RF41712
Sheave, Wire Rope, 3/16 in Max Cable Size, 830 lb Max Load, Natural

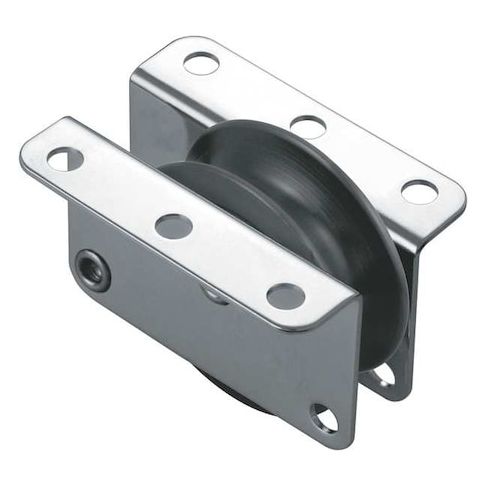

The Ronstan Wire Rope Sheave is a reliable and durable pulley block designed for heavy-duty applications. Ideal for pulling and lifting operations, this sheave features a 3/16 in max cable size and 830 lb max load capacity. Constructed with 316 stainless steel housing and a nylon sheave, it provides excellent corrosion resistance and smooth operation. With a working load limit of 1,100 lb and a compatible rope diameter of 3/8 in, this sheave is suitable for a variety of industries, including construction, shipping, and manufacturing. Its compact design and easy bolt-on attachment make it a convenient addition to any rigging system.
Top product features:
- It has a maximum cable size of 3/16 in to accommodate various wire rope diameters.
- It can handle a maximum load of 830 lb, providing a safe and reliable operation.
- It has a 316 stainless steel housing for durability and resistance to corrosion.
Top product applications:
- Marine winching systems
- Industrial rigging applications
- Material handling equipment
Pulley Block, Product Type Pulley Block, Pulley Type Mounted, Mount Type Upright Mount, Working Load Limit 1,100 lb, Operation Pulling, Attachment Type Bolt-On, Compatible Rope Diameter 3/8 in, Sheave Inside Diameter 1 5/32 in, Sheave Depth 11/16 in, Sheave Outside Diameter 1 9/16 in, Compatible Rope Type Wire Rope, Bearing Type Sleeve, Attachment Inside Diameter Not Applicable, Housing Material 316 Stainless Steel, Mounting Hole Diameter 3/16 in, Number of Grooves 1, Sheave Material Nylon
Additional Information
- Country of Origin: AU
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 1.90
- Package Height: 1.40
- Package Weight: 0.16
Product info last updated on January 27, 2026 4:54am UTC
Category: Lifting, Pulling and Positioning
