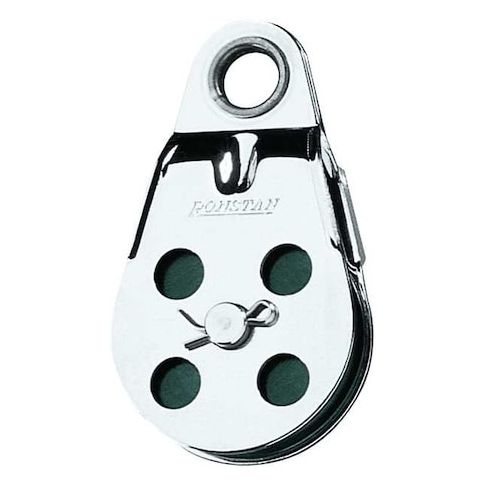

Wire Block, Wire Rope, 1/4 in Max Cable Size, 1, 870 lb Max Load, Natural MPN:RF104
Wire Block, Wire Rope, 1/4 in Max Cable Size, 1, 870 lb Max Load, Natural
Elevate your rigging and lifting operations with Ronstan's Wire Block, a reliable and durable pulley block designed for wire rope applications. Ideal for pulling and lifting heavy loads, this block features a maximum load capacity of 1,870 lbs and a compatible rope diameter of 1/4 in. Constructed from high-quality 316 stainless steel, it provides exceptional corrosion resistance and strength. Perfect for use in marine, industrial, and construction settings, this wire block is a must-have for any operation requiring reliable and efficient wire rope management. Its compact design and easy installation make it a valuable asset for any rigging system.
Top product features:
- It has a fixed pulley that allows for efficient pulling operations.
- The product is designed with a 316 stainless steel housing for durability and resistance to corrosion.
- It has a sleeve bearing that reduces friction and wear on the sheave.
Top product applications:
- Marine rigging and sailing
- Construction and heavy industry
- Cranes and hoists
Pulley Block, Product Type Pulley Block, Pulley Type Fixed, Mount Type Not Applicable, Working Load Limit 1,870 lb, Operation Pulling, Attachment Type Fixed Eye, Compatible Rope Diameter 1/4 in, Sheave Inside Diameter 1 17/32 in, Sheave Depth 11/32 in, Sheave Outside Diameter 1 3/4 in, Compatible Rope Type Wire Rope, Bearing Type Sleeve, Attachment Inside Diameter 12 mm, Housing Material 316 Stainless Steel, Mounting Hole Diameter Not Applicable, Number of Grooves 1, Sheave Material Nylon
Additional Information
- Country of Origin: AU
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 5.00
- Package Height: 0.90
- Package Weight: 0.19
Product info last updated on January 22, 2026 12:13pm UTC
Category: Lifting, Pulling and Positioning
