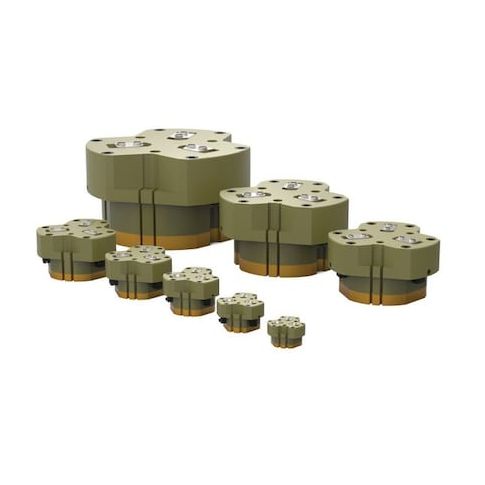

Jaw Parallel Gripper, Series Rth 3 MPN:RTH-8M-L
Jaw Parallel Gripper, Series Rth 3
The ROBOHAND Jaw Parallel Gripper, Series RTH 3, is a robust and reliable gripping solution for industrial automation and robotics applications. Its parallel jaw design allows for precise and consistent gripping of parts, even in high-speed production environments. With a maximum operating pressure of 100 psi and a total rated grip force of 22,784 N, this gripper can handle a wide range of materials and sizes. Its durable construction and wide temperature range (-35°C to 80°C) make it suitable for use in various industries, including manufacturing, assembly, and material handling. It is ideal for applications such as pick-and-place, material transfer, and part assembly.
Top product features:
- Parallel Jaw Gripper design allows for a total rated grip force of 22,784 N at 100 psi.
- The gripper features a carbon steel finger material for durability and strength.
- The gripper has an IP Rating of IP55, providing protection against dust and water.
Top product applications:
- Material Handling: The Jaw Parallel Gripper, Series Rth 3, can be used to pick and place small to medium-sized objects in a manufacturing or assembly line environment.
- Automotive Industry: This gripper can be used in the automotive industry to handle and move parts such as engine components, transmission components, or other small mechanical parts.
- Robotics and Automation: The Jaw Parallel Gripper, Series Rth 3, can be integrated into a robotic system to perform tasks such as assembly, inspection, or packaging of small to medium-sized objects.
Parallel Jaw Gripper, Series RTH, Open Width 310 mm, Stroke Length 70 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 29 psi, Overall Length 196 mm, Overall Width 310 mm, Overall Height 196 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M8, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 43.9 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 22,784 N, IP Rating IP55, Seal Material Buna-N
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
