Jaw Parallel Gripper, Series Rth 3 MPN:RTH-7M

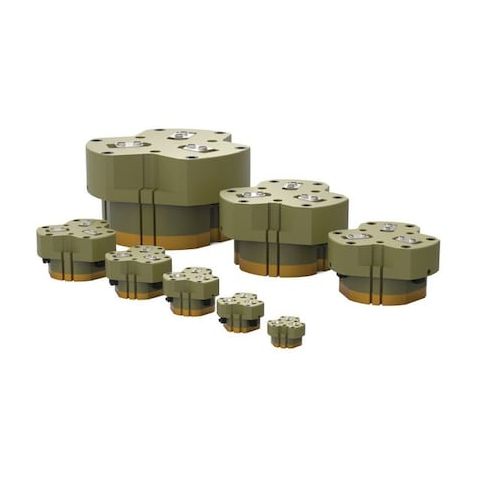

Jaw Parallel Gripper, Series Rth 3
The ROBOHAND Jaw Parallel Gripper, Series RTH 3, is a high-performance, heavy-duty gripper designed for demanding industrial applications. With a maximum operating pressure of 100 psi and a total rated grip force of 17,165 N, this gripper can handle even the toughest tasks. Its compact design and aluminum body make it ideal for use in small spaces, while its carbon steel fingers provide exceptional durability and resistance to wear. Suitable for use in various industries, including manufacturing, logistics, and robotics, this gripper is perfect for applications such as material handling, assembly, and packaging, offering improved efficiency and productivity.
Top product features:
- Parallel jaw design for gripping objects
- Carbon steel fingers for durability and strength
- Operating pressure range of 29-100 psi for flexible gripping force adjustment
Top product applications:
- Material Handling: The Jaw Parallel Gripper can be used to lift and move heavy objects in a warehouse or manufacturing setting, providing a secure grip and precise control.
- Robotics: The gripper's parallel jaw design makes it suitable for use in robotic applications, such as pick-and-place operations or assembly tasks, where precision and reliability are crucial.
- Automotive Manufacturing: The gripper's high operating pressure and grip force make it suitable for use in automotive manufacturing, where heavy metal parts need to be lifted and moved with precision and control.
Parallel Jaw Gripper, Series RTH, Open Width 210 mm, Stroke Length 25 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 29 psi, Overall Length 143 mm, Overall Width 210 mm, Overall Height 143 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 15.7 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 17,165 N, IP Rating IP55, Seal Material Buna-N
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 5, 2026 9:20pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
