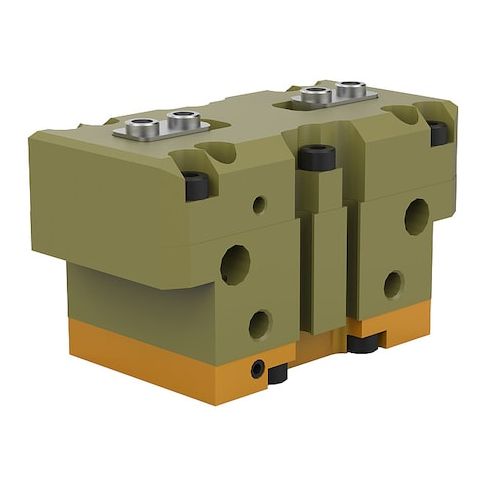

Heavy Duty Gripper, 63 mm, M5, 5 cc MPN:RDH-1M
Heavy Duty Gripper, 63 mm, M5, 5 cc
The Heavy Duty Gripper from ROBOHAND is a robust and reliable solution for a wide range of applications, including manufacturing, material handling, and automation. Its 63mm open width and 4mm stroke length provide a powerful grip, while its maximum operating pressure of 100psi ensures consistent performance. The gripper's aluminum body and carbon steel fingers are built to withstand harsh environments, making it ideal for use in temperatures ranging from -35°C to 80°C. With a total rated grip force of 555N, this gripper is perfect for handling heavy loads and is suitable for use in industries such as automotive, aerospace, and food processing.
Top product features:
- Heavy Duty Gripper with a total rated grip force of 555 N at 100 psi
- Gripper with a maximum operating pressure of 100 psi and a minimum operating pressure of 29 psi
- Fingers made of carbon steel for added strength and durability
Top product applications:
- Material Handling
- Automotive Manufacturing
- Robotics and Automation
Heavy Duty Gripper, Series RDH, Open Width 63 mm, Stroke Length 4 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 29 psi, Overall Length 33 mm, Overall Width 63 mm, Overall Height 63 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.25 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 555 N, IP Rating IP55, Seal Material Buna-N
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.48
- Package Width: 1.30
- Package Height: 1.46
- Package Weight: 0.60
Product info last updated on January 25, 2026 1:38am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
