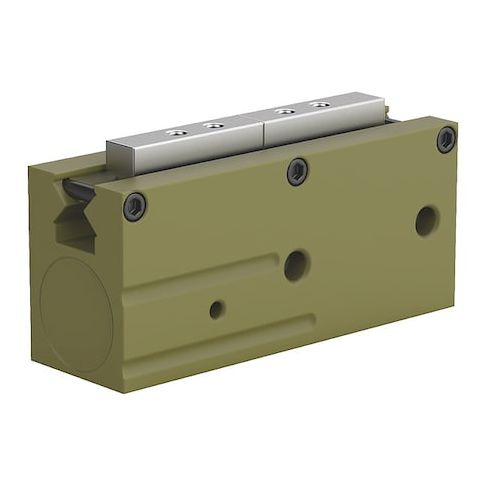

Parallel Gripper, 2 3/8 in, #4, 1.23 cc MPN:RPL-2
Parallel Gripper, 2 3/8 in, #4, 1.23 cc
The ROBOHAND Parallel Gripper, Series RPL, is a compact and reliable component designed for a variety of automation applications. Its low profile and lightweight design make it ideal for use in tight spaces and sensitive environments. With a maximum operating pressure of 100 psi and a minimum operating pressure of 5 psi, this gripper provides a consistent and controlled grip force. Suitable for use in industries such as manufacturing, packaging, and assembly, the ROBOHAND Parallel Gripper is perfect for tasks requiring precision and accuracy. Its durable construction and wide temperature range make it a versatile solution for a range of applications.
Top product features:
- Low profile design allows for compact installation in tight spaces
- Stroke length of 1/2 in enables precise and controlled movement
- Maximum operating pressure of 100 psi provides a strong grip force of 115.65 N
Top product applications:
- Assembly of small electronic components
- Pick and place of small parts in manufacturing
- Food handling and packaging, particularly for delicate or fragile items
Parallel Gripper, Series RPL, Open Width 2 3/8 in, Stroke Length 1/2 in, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 5 psi, Overall Length 3/4 in, Overall Width 2 3/8 in, Overall Height 1 1/8 in, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size #4, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Weight 0.2 lb, System of Measurement Inch, Total Rated Grip Force @ 100 psi 115.65 N, IP Rating IP33, Seal Material Buna-N
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.60
- Package Width: 2.20
- Package Height: 1.60
- Package Weight: 0.21
