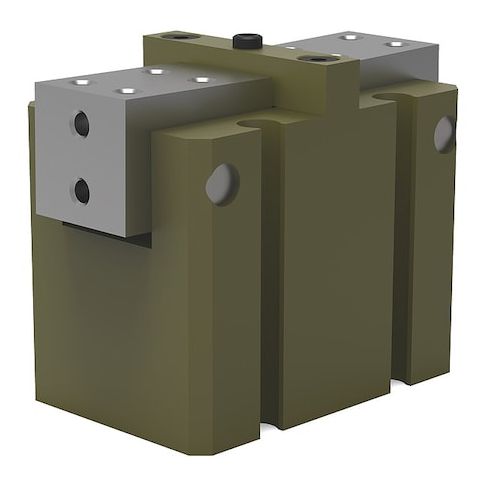

Angular Gripper MPN:RA-5
Angular Gripper
The Angular Gripper from ROBOHAND is a precision-engineered component ideal for applications requiring versatile and reliable gripping capabilities. Its 30-degree total stroke and 15-degree stroke adjustment increment enable seamless adaptation to various tasks. Constructed from durable aluminum and carbon steel, the gripper operates within a temperature range of -30°F to 180°F, making it suitable for a wide range of environments. With a maximum operating pressure of 100 psi, this gripper is perfect for use in robotics, automation, and other industries where precision and reliability are paramount, offering a cost-effective and efficient solution for grasping and manipulating objects of various sizes and shapes.
Top product features:
- Open width of 1 3/4 in allows for a wide range of objects to be gripped.
- Total stroke of 30 degrees enables the gripper to move objects through a significant angular range.
- Maximum operating pressure of 100 psi allows for the gripper to securely grasp objects under high stress conditions.
Top product applications:
- Assembly and disassembly of small parts in a manufacturing line
- Automated packaging and sorting of small items
- Medical device assembly and testing
Angular Gripper, Series RA, Open Width 1 3/4 in, Total Stroke 30 Degrees , Maximum Operating Pressure 100 psi, Minimum Operating Pressure 40 psi, Overall Length 1 3/4 in, Overall Width 1 1/2 in, Overall Height 1 3/8 in, Body Material Aluminum, Finger Material Carbon Steel, Maximum Operating Temperature 180 Degrees F, Stroke Adjustment Increment 15 Degrees , IP Rating IP43, Gripper Rotation 15 Degrees , Minimum Operating Temperature -30 Degrees F, Inlet Size M5, Weight 0.25 lb
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 35 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on January 27, 2026 6:01am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
