Parallel Gripper, Direct Connect MPN:DPG-10M-2

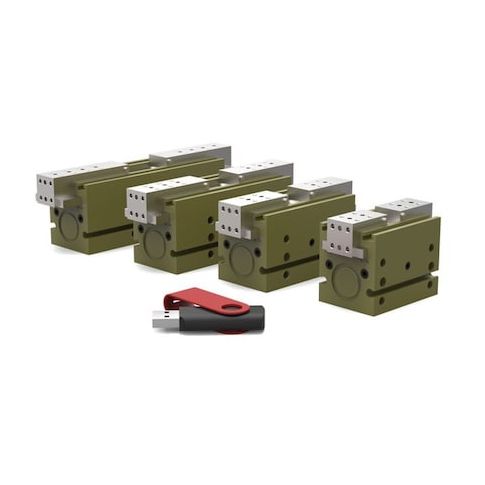

Parallel Gripper, Direct Connect
The ROBOHAND Parallel Gripper, Direct Connect is a robust and versatile actuator designed for a wide range of industrial applications. Its compact size and lightweight design make it ideal for use in robotic systems, machine tools, and assembly lines. With a maximum operating pressure of 100 psi and a total rated grip force of 222 N, this gripper can securely grasp and manipulate objects with precision. Suitable for use in temperatures ranging from -35°C to 80°C, it's perfect for applications in manufacturing, logistics, and material handling, offering a reliable and efficient solution for automating tasks and increasing productivity.
Top product features:
- Parallel Gripper has a maximum operating pressure of 100 psi.
- Parallel Gripper has a total rated grip force of 222 N at 100 psi.
- Parallel Gripper has an IP54 rating for dust and water protection.
Top product applications:
- Automotive Manufacturing: The Parallel Gripper can be used to handle small parts and components in the automotive manufacturing process, such as gripping and placing gears, bearings, or other metal parts.
- Medical Device Assembly: The gripper's precision and reliability make it suitable for handling small medical devices, such as surgical instruments, implantable devices, or diagnostic equipment, during the assembly process.
- Robotics and Automation: The Parallel Gripper can be integrated into robotic systems to perform tasks such as picking and placing small objects, handling delicate components, or assembling complex mechanisms.
Parallel Gripper, Series DPG, Open Width 86 mm, Stroke Length 12.7 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 40 psi, Overall Length 34.9 mm, Overall Width 73 mm, Overall Height 44.9 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.24 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 222 N, IP Rating IP54, Seal Material Buna-N
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on January 19, 2026 10:30pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
