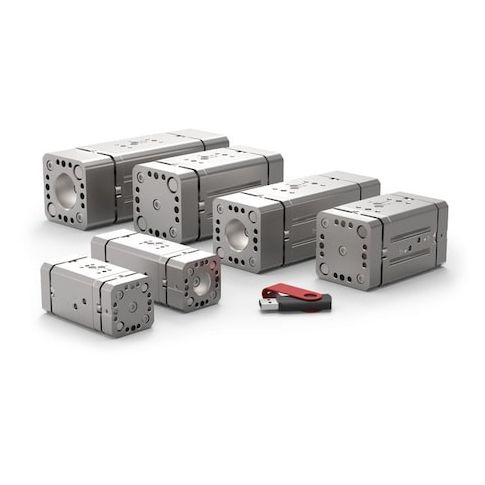

Parallel Gripper, Widebody, Directconnect MPN:DPW-500M-1
Parallel Gripper, Widebody, Directconnect
The Parallel Gripper, Widebody, Directconnect from ROBOHAND is a high-performance gripper designed for demanding industrial applications. Its widebody design and directconnect functionality enable precise and robust grasping of a wide range of objects. With a maximum operating pressure of 100 psi and a total rated grip force of 800 N, this gripper is ideal for use in assembly, material handling, and manufacturing processes. Its durable construction and wide operating temperature range make it suitable for use in various industries, including automotive, aerospace, and electronics. Its compact size and low weight also make it a great option for robotic applications.
Top product features:
- Open Width of 164 mm allows for a wide range of object sizes to be gripped.
- Maximum Operating Pressure of 100 psi enables the gripper to handle heavy or dense objects.
- Total Rated Grip Force of 800 N at 100 psi provides a strong and secure grasp on objects.
Top product applications:
- Assembly and Packaging of Small Parts
- Material Handling and Sorting
- Pick and Place Operations in Electronics Manufacturing
Parallel Gripper, Series DPW, Open Width 164 mm, Stroke Length 38.1 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 21.7 psi, Overall Length 63 mm, Overall Width 125 mm, Overall Height 51 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 1.48 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 800 N, IP Rating IP66, Seal Material Buna-N
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
