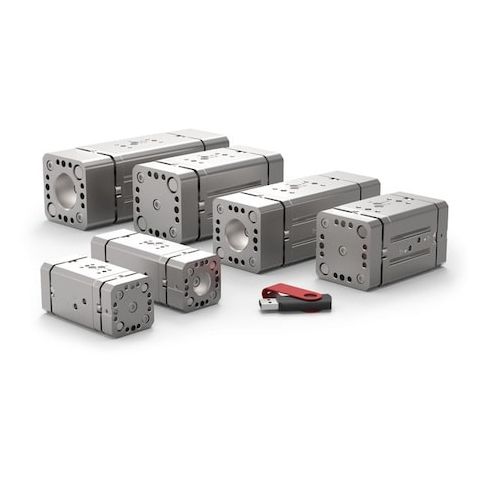

Parallel Gripper, Widebody, Directconnect MPN:DPW-500M-2
Parallel Gripper, Widebody, Directconnect
The Parallel Gripper, Widebody, Directconnect from ROBOHAND is a versatile and reliable robotic gripper designed for a variety of industrial applications. With a maximum operating pressure of 100 psi and a total rated grip force of 800 N, it can securely grasp and manipulate objects with precision and accuracy. Suitable for use in manufacturing, assembly, and material handling, this gripper features a durable aluminum body and carbon steel fingers, ensuring long-lasting performance in demanding environments. Its compact design and wide operating temperature range make it an ideal solution for a range of industries, including automotive, aerospace, and consumer goods.
Top product features:
- Parallel gripper design allows for a wide range of grasping capabilities
- Fingers are made of carbon steel for increased durability and strength
- Operating pressure range of 21.7 to 100 psi enables precise control over grip force
Top product applications:
- Material Handling: The Parallel Gripper can be used to pick and place objects in a manufacturing or packaging environment.
- Assembly and Inspection: The gripper's precise grip force and widebody design make it suitable for assembly and inspection tasks in industries such as aerospace and electronics.
- Robotics and Automation: The Directconnect feature allows for easy integration with robotic arms, making the Parallel Gripper a suitable choice for applications in robotics and automation.
Parallel Gripper, Series DPW, Open Width 240 mm, Stroke Length 63.5 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 21.7 psi, Overall Length 63 mm, Overall Width 177 mm, Overall Height 51 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 2 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 800 N, IP Rating IP66, Seal Material Buna-N
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on March 31, 2026 5:56pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
