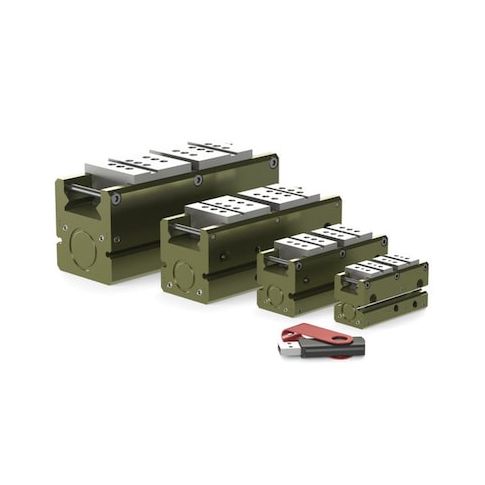

Parallel Gripper, Precision, Directconnect MPN:DPP-14M-25
Parallel Gripper, Precision, Directconnect
The ROBOHAND Parallel Gripper, Precision, Directconnect is a versatile and reliable component for industrial automation applications. This gripper is designed for precise handling and manipulation of objects, with a parallel jaw design that provides consistent grip force and a directconnect interface for easy integration. With a maximum operating pressure of 7 bar and a minimum operating pressure of 0.3 bar, this gripper is suitable for a wide range of applications, including material handling, assembly, and packaging. Its compact size and high precision make it ideal for use in robotics, machine vision, and other precision automation systems.
Top product features:
- Direct connect design for easy integration into systems
- Seal material Buna-N for resistance to chemicals and abrasion
- Stroke length 25.4 mm for precise and repeatable movement
Top product applications:
- Pick and Place Machines: The Parallel Gripper's precision and directconnect design make it suitable for use in pick and place machines, where accurate and reliable component handling is crucial.
- Automated Assembly Lines: The gripper's high operating pressure and low minimum operating pressure make it suitable for use in high-speed automated assembly lines, where components need to be handled quickly and efficiently.
- Medical Device Manufacturing: The gripper's precision and ability to operate in a wide temperature range make it suitable for use in medical device manufacturing, where accurate and reliable component handling is critical.
Parallel Gripper,Precision,Directconnect, Series DPP, Open Width 107 mm, Stroke Length 25.4 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 0.3 bar, Overall Length 34 mm, Overall Width 118.7 mm, Overall Height 42.21 mm, Inlet Size M3, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.57 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 200 N, IP Rating IP43, Seal Material Buna-N, Displacement 4.1 cc
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 2, 2026 8:46pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
