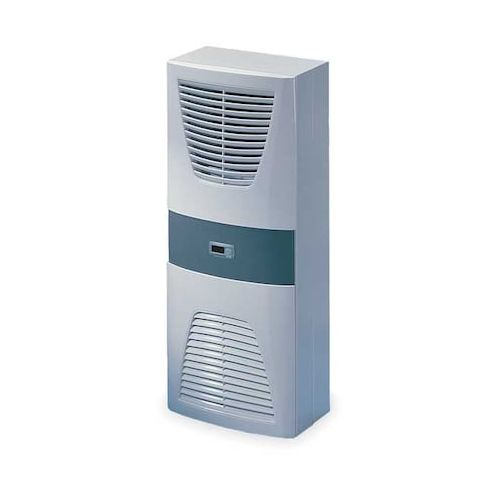

3305540 Enclosure AC, Wall Mount, 5157 BtuH MPN:3305540
Free Shipping
In Stock
The Rittal 3305540 is a reliable and efficient wall-mounted enclosure air conditioner designed to maintain optimal internal temperatures in a variety of applications. Suitable for use in harsh environments, this three-phase unit features a durable slate gray sheet steel housing and a hydrophobic RiNano coating to ensure reliable operation. With a cooling capacity of up to 6,005 BtuH and a temperature control range of 68°F to 131°F, it is ideal for use in industrial settings, data centers, and other high-temperature environments where precise temperature control is critical. Its compact design and easy installation make it a convenient solution for many applications.
Top product features:
- Three-phase operation
- Hydrophobic RiNano coating on condenser
- Cooling setpoint range adjustable between 68°F and 131°F
Top product applications:
- Server Rooms
- Data Centers
- Telecom Equipment Rooms
The Rittal 3305540 is a three-phase, wall-mounted enclosure air conditioner featuring a slate gray sheet steel housing. This cooling-only unit utilizes R134a refrigerant and a comfort controller to manage internal enclosure temperatures. It is equipped with a condenser featuring a hydrophobic RiNano coating and arrives fully wired with assembly parts and a drilling template included.
Performance and Capacity:
- - Cooling Capacity: Provides a base cooling capacity of 5,157 BtuH, with a maximum capacity reaching 6,005 BtuH.
- - Operating Range: Maintains functionality within an ambient temperature range of 50°F to 131°F.
- - Temperature Control: Features a cooling setpoint range adjustable between 68°F and 131°F.
- - Power Consumption: Rated for 1.6 kW during operation.
Electrical and Safety Specifications:
- - Voltage and Frequency: Operates at 400/460V across 50/60 Hz frequencies.
- - Current: Rated current is 2.5/2.8 A, with an amperage range of 2.8/2.9 A.
- - Standards: Compliance includes UL, cUL, cUR, CSA, EAC, FTTA, and UR certifications.
Mechanical Construction:
- - Dimensions: Measures 37.4 inches in height, 15.75 inches in width, and 10.24 inches in depth.
- - Mounting: Specifically configured for wall-mount installation on enclosures.
- - Material: The housing is constructed from sheet steel finished in slate gray.
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.00
- Package Height: 43.50
- Package Weight: 99.00
