Enclosure AC, Wall Mount, 5157 BtuH MPN:3305510
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2274693
Enclosure AC, Wall Mount, 5157 BtuH

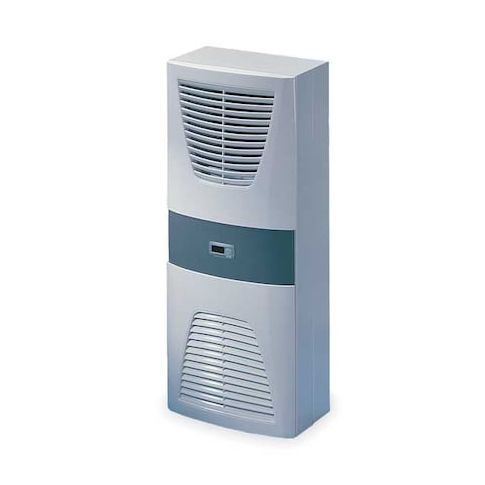

The Rittal 5157 BtuH Enclosure AC is a powerful and versatile cooling solution for industrial and commercial applications. Perfect for use in control panels, switchgear, and other electronic enclosures, this wall-mount air conditioner provides efficient and reliable cooling in a compact design. With a cooling capacity of 5157 BtuH, it can effectively regulate temperatures in even the most demanding environments. Its NEMA 12 enclosure and rugged construction ensure durability and protection from the elements, while its CSA and UL certifications guarantee compliance with industry standards. Ideal for use in harsh industrial settings, this AC is a reliable choice for keeping equipment cool and running smoothly.
Top product features:
- Wall Mount design allows for flexible installation options
- Refrigerant cooling method provides efficient temperature control
- Comfort Controller offers adjustable temperature settings for user comfort
Top product applications:
- Control Panels
- Server Rooms
- Telecommunications Equipment Rooms
This Rittal wall-mount enclosure air conditioner is rated at 5,157 BtuH cooling capacity (6,005 BtuH max) and uses R134a refrigerant with a Comfort Controller. It runs on single-phase power at 115V, drawing 11.5/12.5 amps at 50/60 Hz, with power consumption of 1.6 kW. The unit is fully wired and ships with assembly parts, a drilling template, and a condenser with hydrophobic RiNano coating included. The housing is sheet steel with a slate gray finish, and the unit carries a NEMA 12 enclosure rating. Listed operating temperature range is 50°F to 131°F, with a cooling setpoint range of 68°F to 131°F. Specifications Cooling Capacity: 5,157 BtuH (6,005 BtuH max) Voltage: 115V | Phase: Single | Frequency: 50/60 Hz Current: 11.5/12.5 A Power Consumption: 1.6 kW NEMA Enclosure Rating: 12 Operating Temp Range: 50°F to 131°F Cooling Setpoint Range: 68°F to 131°F Refrigerant: R134a | Cooling Method: Refrigerant Housing: Sheet Steel, Slate Gray Standards: CSA, cUL, cUR, EAC, FTTA, UL, UR Dimensions: 37 in H x 16 in W x 10 in D Country of Origin: Italy
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 13.00
- Package Height: 43.50
- Package Weight: 113.00
Product info last updated on March 11, 2026 10:58am UTC
Category: Air Conditioners
