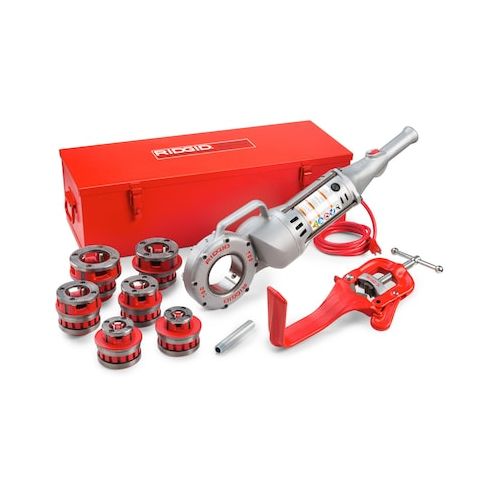

Pipe Threading and Cutting Machines, 1/8 in to 2 in, Rod: 1/4 in to 1 in Bolt: 1/4 in to 1 in MPN:45178
Free Shipping
In Stock
Take your pipe threading and cutting projects to the next level with this portable, handheld power drive machine. Compatible with die head type 12R, it can handle pipe sizes from 1/8 in to 2 in and bolt sizes from 1/4 in to 1 in. The machine includes six NPT die heads and a support arm, making it ideal for plumbers, HVAC technicians, and contractors. With its cast aluminum housing and 1/2 horsepower motor, this machine is built to withstand heavy use. Perfect for threading and cutting pipes in tight spaces, it's a valuable addition to any professional's toolkit.
Top product features:
- Cutting and threading pipes up to 2 in in size
- Includes six NPT die heads for various pipe sizes
- Cuts and threads pipes with a free speed of 36 RPM
Top product applications:
- Pipe threading for hydraulic fittings
- Cutting and threading pipes for plumbing and HVAC installations
- Manufacturing custom pipe threads for industrial equipment
The RIDGID 45178 is a handheld electric pipe threading machine for threading pipes and bolts within the specified diameter and bolt-size ranges. Its universal motor rated at 1/2 hp and 36 RPM single speed supports right-hand and left-hand threading when operated with the double-throw reversible switch. The machine is powered by a 120 V corded power source and rated for operation on single-phase 60 Hz power. Cast aluminum housing for handheld operation and includes six NPT-compatible die heads: 1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, and 2 in.
Key Features:
- - Portable handheld power drive
- weight: 25 lb
- dimensions: 28.25 in (L) x 4 in (W) x 7.82 in (H) (as stated).
- - Includes six die heads (1/2", 3/4", 1", 1 1/4", 1 1/2", 2") and a support arm in a carrying case.
- - Motor type: Universal, with 1,500 W power output and 1/2 hp horsepower.
- - Reversible operation using a double throw reversible switch.
- - Gear-type pump and hammer chuck as component parts used in the threading mechanism.
- - Thread standard of included dies is NPT, for use with NPT thread form die heads (NPT-compatible die heads included).
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.40
- Package Width: 11.80
- Package Height: 8.50
- Package Weight: 97.00
