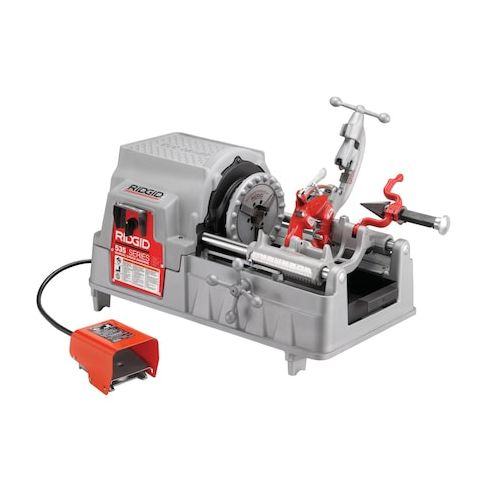

Model 535 Power Threading Machine, 93287, Hammer Chuck, 1/2" - 2" NPT MPN:93287
Free Shipping
In Stock
The RIDGID Model 535 Power Threading Machine is a high-volume shop solution for consistent torque and precise threading. Engineered for industrial production, it features a 2 HP motor, high-clearance carriage, and oversized oil reservoir for continuous operation. The manual speed chuck with replaceable jaw inserts and cam-action rear centering device ensure precise alignment and centering of workpieces. Ideal for plumbing, HVAC, and industrial applications, this machine is designed for stationary use and can be expanded to accommodate pipe up to 6 inches with compatible geared threaders.
Top product features:
- The RIDGID 535 utilizes a manual speed chuck with replaceable rocker-action jaw inserts to grip and center the workpiece.
- The machine is built on a cast aluminum housing and includes a cam-action rear centering device that rotates with the chuck for precise alignment.
- The integrated self-priming gerotor pump provides through-the-head lubrication.
Top product applications:
- Pipe Threading
- Rod Threading
- Machining
The RIDGID Model 535 (93287) is a stationary, manual-chuck power threading machine engineered for high-volume shop use. This model features a 2 HP motor to maintain consistent torque while threading pipe up to 2 inches or rod up to 2 inches. It is designed with a high-clearance carriage and an oversized 1.75-gallon oil reservoir to support continuous industrial production.
The RIDGID 535 utilizes a manual speed chuck with replaceable rocker-action jaw inserts to grip and center the workpiece. The machine is built on a cast aluminum housing and includes a cam-action rear centering device that rotates with the chuck for precise alignment. It is compatible with Model 141 and 161 geared threaders, allowing the machine's capacity to be expanded for pipe up to 6 inches.
Performance and Power:
- - Motor: 2 HP, 120V single-phase induction motor providing a steady 36 RPM free speed.
- - Output: 1,700 W power output with a 15 Amp current rating.
- - Duty Cycle: Designed for stationary industrial applications.
- - Oiling: Integrated self-priming gerotor pump provides through-the-head lubrication.
Mechanical Features:
- - Quick-Opening Die Head: Includes a universal right-hand NPT die head that allows the operator to manually disengage the dies when the thread is complete.
- - Tool Set: Equipped with a Model 820 wheel cutter and a Model 341 5-flute reamer (1/8" to 2").
- - Chip Management: Features an extra-large chip tray to minimize cleanup time during high-volume threading runs.
- - Control: Operated via a Forward/Off/Reverse switch and an integrated safety foot switch.
Technical Specifications:
- - Pipe Capacity: 1/8" – 2" (3mm – 50mm).
- - Bolt/Rod Capacity: 1/4" – 2" (6mm – 50mm).
- - Overall Dimensions: 37" Length x 21" Width x 21" Height.
- - Tool Weight: 260 lb.
- - Oil Capacity: 1.75 Gallons.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 47.50
- Package Width: 23.80
- Package Height: 27.00
- Package Weight: 286.00
