26092 Threading Machine + Cart (92467), 1/4 in to 4 in Rod: 1/4 in to 2 in Bolt: 1/4 in to 2 in MPN:26092/92467

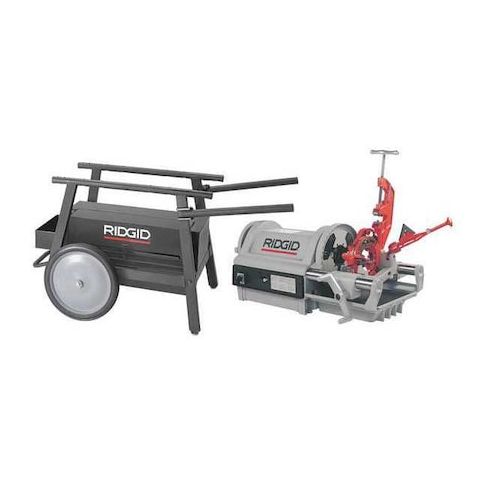

The RIDGID 26092/92467 is a pipe threading machine kit built around the Model 1224 power threader and the Model 200A universal wheel and cabinet stand. This system is designed to center, chuck, and rotate pipe, conduit, and bolt stock while performing threading, cutting, and reaming operations.

Performance and Motor Specifications:

• - High-Torque Motor: Powered by a 1-1/2 HP single-phase induction motor
• - Two-Speed Transmission: Features a 3:1 ratio gearbox that delivers 36 RPM for 1/4" to 2" diameters and 12 RPM for 2-1/2" to 4" workpieces.
• - Electrical: Operates on a standard 115V (120V), 15 Amp, 50/60 Hz power supply.

  Material and Pipe Capacities

• - Dimensions:
  • - Pipe Capacity: 1/4" to 4".
  • - Bolt Capacity: 1/4" to 2".
  • - Rod Size: 1/4" to 2".

    Standard Features

  • - Chuck System: Equipped with a hammer-type chuck featuring replaceable rocker-action jaw inserts and a cam-action rear centering device.
  • - Control: Features a Reverse/Off/Forward rotary switch and an integral foot switch for safe, hands-free operation.

    Complete Kit Components

  • - This package includes the following tools and accessories:
    • - Die Heads: (1) 1/4"–2" Universal Self-Opening Die Head and (1) 2-1/2"–4" Receding Self-Opening Die Head.
    • - Dies: Sets of 1/2"–3/4" and 1"–2" Universal Alloy dies, plus two sets of 2-1/2"–4" High-Speed dies.
    • - Cutting Tools: (1) Model 764 Wheel-Type Pipe Cutter (1/4"–4") and (1) Model 744 Blade-Type Reamer (1/4"–4").
    • - Maintenance & Setup: (1) Gallon of Nu-Clear thread cutting oil, a spare cutting wheel, (3) hex keys, and a 3/4" combination wrench.
    • - Mobility: (1) Cab Roll Stand (Universal Wheel & Cabinet Stand) and a dedicated tool box.



    Additional Information

    • Country of Origin: US
    • Drop Ship Item: No
    • Blind Ship Eligible: No
    • LTL Freight Required: No
    • Lead Time: Ships in 1 days
    • Minimum Order Quantity: 1
    • Unit of Measure: EA
    • Package Length: 1.00
    • Package Width: 1.00
    • Package Height: 1.00
    • Package Weight: 1.00
