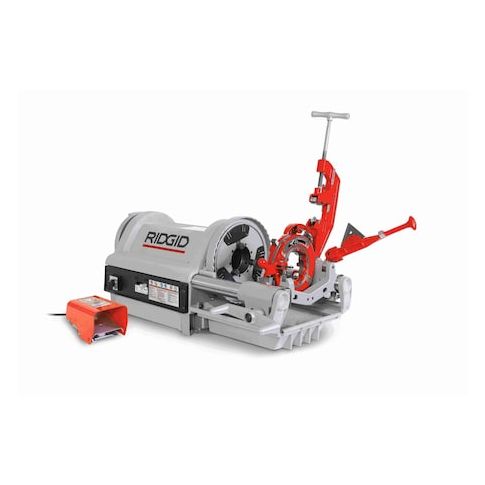

Model 1224 Pipe Threading Machine with Hammer Chuck, 26092, 1/4" - 4" NPT, 120 V MPN:26092

The RIDGID 1224 pipe threader is a stationary power threading machine designed for high-capacity pipe and bolt fabrication. Powered by a 1.5 HP, single-phase induction motor, the 1224 pipe threading machine maintains a constant torque output for threading pipe from 1/4-inch to 4-inch diameters and rod/bolts from 1/4-inch to 2-inch diameters. The system is engineered for low-noise operation and features a two-speed gearbox to optimize performance based on the workpiece size.

SPECIFICATIONS:

• • Nominal Pipe Capacity – ¼" - 2" (6mm - 100mm) @ 36 RPM, 2 ½" - 4“ (65mm 100mm) @ 12 RPM, 4" - 6" (100mm - 150mm) with 161 Geared

  Threader:

  • • Bolt Capacity – ¼" - 2" (6mm - 50mm)
  • - Motor Control – REVERSE/OFF/FORWARD, heavy-duty rotary type and integral foot switch
  • - Gear Box – Two speed gear box with a 3:1 ratio
  • - Chuck – Hammer-type with replaceable rocker action jaw inserts
  • - Rear Centering Device – Cam action
  • - Oiling Pump – Self-priming, gerotor type, automatic reversing, constant flow
  • - Oiling – Through die head



  Additional Information

  • Country of Origin: US
  • Drop Ship Item: No
  • Blind Ship Eligible: No
  • LTL Freight Required: No
  • Lead Time: Ships in 1 days
  • Minimum Order Quantity: 1
  • Unit of Measure: EA
  • Package Length: 48.00
  • Package Width: 34.00
  • Package Height: 26.00
  • Package Weight: 509.00
