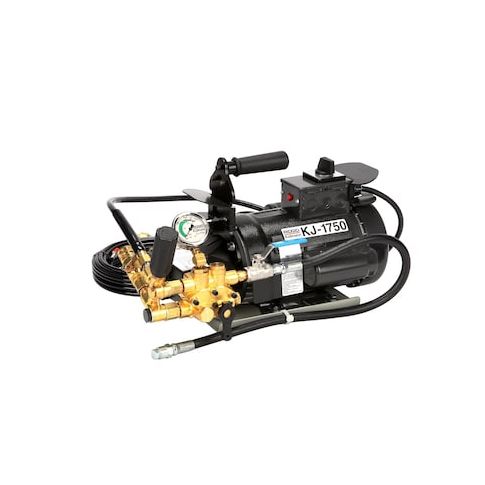

KJ-1750 Drain Cleaning Machine 200 ft MPN:62697

The RIDGID KJ-1750 (Model 62687) is a Ridgid water jetter for cleaning drain lines from 1-1/4 inches to 4 inches in diameter. It is powered by a 2 HP motor that drives a duplex pump, delivering a maximum jet pressure of 1,750 psi and a flow rate of 1.4 gpm. The unit is mounted on a specialized cart with a hose reel and includes a "pulse action" feature to assist in navigating tight bends and traps.

Mechanical and Performance Data:

• - Motor: 2 HP, 120V AC, 17 Amps (requires a 20A circuit).
• - Pump: Duplex pump delivering 1,750 psi and 1.4 gpm.
• - Operating Speed: 1,725 RPM.
• - Line Capacity: 1-1/4" to 4" I.D. drain lines.
• - Maximum Run: 200 feet.

  Hose and Nozzle Specifications:

  • - The KJ-1750 includes two distinct hose assemblies for different applications:
    • - Main Hose: 1/2 in. x 110 ft. jet hose.
    • - Sink Trap Hose: 1/8 in. x 50 ft. hose for smaller lines.
    • - Nozzle Set: Includes five nozzles:
      • - H-41, H-42, H-44: 1/8" NPT (Propulsion, Penetrating, and Drop Head).
      • - H-51, H-52: 1/4" NPT (Propulsion and Penetrating).




      Additional Information

      • Country of Origin: US
      • Drop Ship Item: Yes
      • Blind Ship Eligible: No
      • LTL Freight Required: No
      • Lead Time: Ships in 7 days
      • Minimum Order Quantity: 1
      • Unit of Measure: EA
      • Package Length: 28.10
      • Package Width: 23.10
      • Package Height: 50.30
      • Package Weight: 186.00
