Portable Pipe Threading Machine, 300 Series, 1/8 in to 2 in Pipe, 1/4 in to 2 in Rod/Bolt MPN:67182
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1940863
Portable Pipe Threading Machine, 300 Series, 1/8 in to 2 in Pipe, 1/4 in to 2 in Rod/Bolt

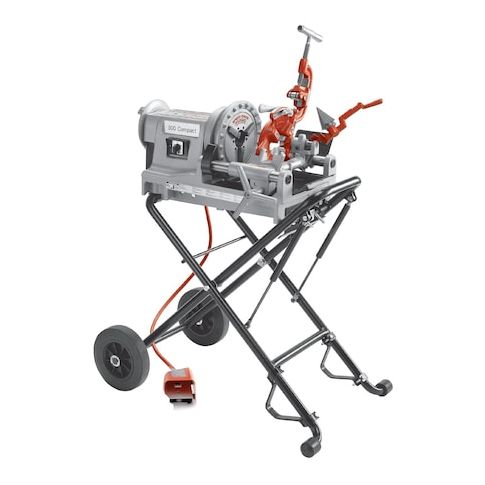

The RIDGID 67182 is a portable pipe threading machine designed for threading and cutting pipe from 1/8 in. to 2 in., and for working with rod and bolt sizes from 1/4 in. to 2 in. As a corded, single-phase power threading machine, it is used for pipe preparation and threading tasks where consistent powered operation and through-the-head oiling are required.
Key Features:
- Pipe capacity: Handles pipe sizes from 1/8 in. to 2 in. for threading and cutting operations.
- Rod and bolt capacity: Compatible with rod and bolt sizes from 1/4 in. to 2 in.
- Through-the-head oiling: Self-contained oil system with adjustable flow control and an integral oil reservoir helps deliver oil directly during threading.
- Pump type: Self-priming constant flow gerotor pump supports continuous oil delivery.
- Chuck type: Manual chuck for securing the workpiece during operation.
- Die head: Includes 1 NPT die head, with die head size range from 1/2 in. to 2 in.
- Motor and speed: 1/2 hp motor with a single speed of 36 RPM.
- Electrical specifications: 120 V, 15 A, 60 Hz, single-phase, corded power with a three-prong plug.
- Controls: Forward/Off/Reverse switch and integral foot switch
- reversible operation for threading control.
- Included components: Reamer, full floating self-centering cutter, 5/32 in., 3/16 in., and 5/16 in. hex keys, stand, Nu-Clear oil, and NPT die head.
- Dimensions and weight: 12 in. overall length, 13 in. overall width, and 160 lb tool weight.
- Standards: CSA Certified, NRTLC, and UL Listed.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 50.00
- Package Width: 30.00
- Package Height: 37.00
- Package Weight: 222.00
