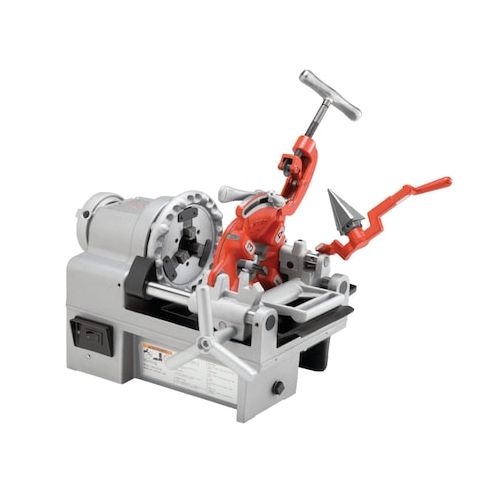

Pipe Threading Machine, 1215 Series, 1/4 in to 1-1/2 in Pipe, 5/16 in to 1 in Bolt/Rod MPN:61142
Free Shipping
In Stock
Take your plumbing and HVAC projects to the next level with the Rigid Pipe Threading Machine. This powerful tool can handle pipes from 1/4 to 1-1/2 inches, making it perfect for a wide range of applications, including residential and commercial plumbing, HVAC, and industrial pipe fabrication. The machine's 1/2 horsepower motor and through-the-head oiling system ensure smooth and efficient threading, while the included cutter assembly and Nu-Clear oil make maintenance a breeze. Ideal for contractors, plumbers, and DIYers, this machine is a game-changer for any project requiring precision pipe threading.
Top product features:
- Cuts pipe to precise lengths
- Threads pipe to NPT standard
- Includes a quick-open right-hand NPT die head
Top product applications:
- Pipe fabrication shops
- Construction sites
- Industrial maintenance facilities
The RIDGID 61142 is a corded stationary power pipe threading machine for threading and cutting pipe from 1/4 in. to 1-1/2 in., and threading rod and bolts from 5/16 in. to 1 in. It is built with a compact, lightweight, portable design and includes two carrying handles, making it easier to move between work areas. This machine uses a manual chuck, runs at 44 RPM, and features through-the-head oiling to support the threading process.
Key Features:
- Pipe capacity: Handles pipe sizes from 1/4 in. to 1-1/2 in. for threading and cutting operations.
- Rod and bolt capacity: Threads rod and bolts from 5/16 in. to 1 in.
- Included die head: Comes with one quick-open right-hand NPT die head, with die head sizes from 1/2 in. to 1-1/2 in.
- Through-the-head oiling: Delivers oil through the head during threading
- includes a self-priming constant flow gerotor pump and 0.4 gal. oil capacity.
- Portable construction: Aluminum housing, compact lightweight design, and two carrying handles.
- Power and motor details: 120 V, single-phase, 60 Hz, 24 A, 1/2 hp standard motor.
- Controls: Heavy-duty on/off switch and integral foot switch
- includes an integral footswitch hanger and adjustable oil low control.
- Operating setup: Single-speed machine with a free speed of 44 RPM
- non-reversible manual chuck design.
- Included components: Cutter assembly, Nu-Clear oil, and quick-open right-hand NPT die head.
- Size and weight: Measures 25.5 in. long by 14 in. wide and weighs 80 lb.
- Listings: CSA Certified and UL Listed.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 0 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 18.00
- Package Height: 18.30
- Package Weight: 114.00
