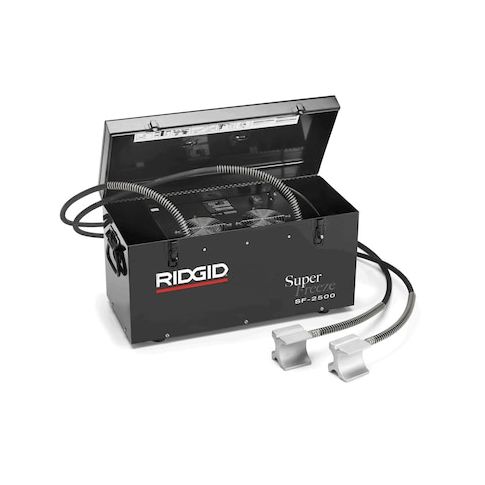

Superfreeze Pipe Freezer 68967, SF-2500 MPN:68967
Free Shipping
In Stock
The RIDGID SF-2500 pipe freezer is a compact and efficient solution for freezing pipes in a variety of applications. This mini-refrigeration unit can form an ice plug in as little as 6 minutes, eliminating the need for CO2 or nitrogen tanks. Ideal for plumbers and pipefitters, it can handle copper pipes from 1/2-inch to 2-1/2-inch CTS and steel pipes from 1/2-inch to 1-inch nominal. Its continuous freeze feature allows for uninterrupted repairs, making it a valuable tool for pipe thawing and repair in residential, commercial, and industrial settings.
Top product features:
- Circulates R-507 refrigerant through 8.5-foot hoses to specialized aluminum freeze heads.
- Forms an ice plug in as little as 6 minutes, depending on the pipe material and ambient temperature, when clamped to a pipe.
- Provides a continuous freeze for the duration of the repair, eliminating the need for CO2 or nitrogen tanks.
Top product applications:
- Pipe freezing for repair and maintenance
- Freezing pipes for threading and cutting
- Freezing pipes for tapping and drilling
The RIDGID SF-2500 pipe freezer (68967) is a mini-refrigeration unit utilizing a rotary, hermetic, low-back-pressure compressor. It circulates R-507 refrigerant through 8.5-foot hoses to specialized aluminum freeze heads. When clamped to a pipe, these heads can form an ice plug in as little as 6 minutes, depending on the pipe material and ambient temperature. This "compressor-style" freezing method eliminates the need for CO2 or nitrogen tanks, providing a continuous freeze for the duration of the repair.
Performance and Capacity:
- - Pipe Capacity (Copper): 1/2-inch to 2-1/2-inch CTS.
- - Pipe Capacity (Steel): 1/2-inch to 1-inch nominal.
- - Freeze Time: Typically ranges from 6 to 15 minutes.
- - Operating Range: The 17-foot total span (two 8.5-foot hoses) allows for significant reach from the compressor unit to the repair site.
Mechanical and Electrical Specifications:
- - Compressor Type: Rotary, Hermetic (480W input power).
- - Electrical: 115V, Single-Phase, 60Hz (rated at 4.3 Amps
- 2.4A continuous).
- - Refrigerant: Self-contained R-507.
- - Pressure Ratings: 500 PSI (High side) / 300 PSI (Low side).
- - Tool Weight: 55 lbs (housed in a steel carrying case).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.20
- Package Width: 12.80
- Package Height: 16.00
- Package Weight: 59.00
