300 Comp Npt 115V 57 RPM20 Amps MPN:15722

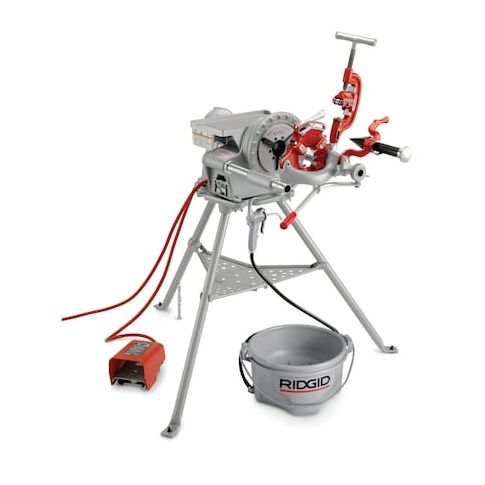

The RIDGID 15722 pipe threader is a portable power threading system. This configuration operates at 57 RPM. The unit is powered by a 1/2 HP reversible universal motor.

Performance and Capacity:

• - Spindle Speed: 57 RPM (No-load).
• - Motor: 1/2 HP, 115V, 18A, Single-Phase.

  Mechanical Configuration:

  • - Chuck: Manual speed chuck with replaceable, rocker-action jaw inserts that grip the pipe securely during rotation.
  • - Rear Centering Device: A cam-action device that rotates with the chuck to maintain alignment.
  • - Oiling System: Includes an oiler, a manual hand-pump system with a 1-gallon reservoir.
  • - Support Structure: Two support bars provide a stable carriage for the cutter, reamer, and die head.

    Portability and Setup:

    • - Transport: Includes a wheeled cart that allows the machine to be moved without disassembly.
    • - Stand: Equipped with a stand, which provides a stable working height and collapses for transport.
    • - Switching: Controlled by a recessed Forward/Off/Reverse switch and an integrated safety foot switch.



    Additional Information

    • Country of Origin: US
    • Drop Ship Item: No
    • Blind Ship Eligible: No
    • LTL Freight Required: No
    • Lead Time: Ships in 1 days
    • Minimum Order Quantity: 1
    • Unit of Measure: EA
    • Package Length: 46.20
    • Package Width: 24.00
    • Package Height: 15.80
    • Package Weight: 228.00



    Additional Information

    • UPC Code: 095691157225
    • Country of Origin: UNITED STATES
    • Hazmat Item: No
    • Special Order Item: Yes
    • State Restricted: NO
    • Minimum Order Quantity: 1
    • Minimum Order UOM: EA
    • Cost UOM: EA
    • UOM Conversion: 1 EA = 1 EA
    • Item Weight: 212
    • Item Length: 24
    • Item Width: 15.8
    • Item Height: 46.3
    • Item Cube: 17556.96
