Vacuum Pump, 2 hp, 3 Phase, 230/460V AC MPN:VCS 50

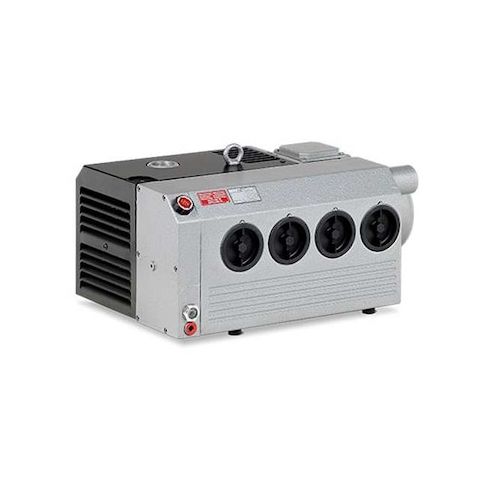

Vacuum Pump, 2 hp, 3 Phase, 230/460V AC
The Rietschle Thomas 2 HP Vacuum Pump is a powerful and versatile solution for various applications, including die casting, vacuum packaging, vacuum chucking, and vacuum thermoforming. With a maximum flow rate of 35.3 cfm and a maximum vacuum of 0.1 mbar, this pump efficiently handles demanding tasks. Its 2 hp output power and 230/460V AC voltage ensure reliable operation. The pump's compact design and durable construction make it a valuable asset for industries requiring high-performance vacuum systems. By utilizing this pump, users can achieve precise control, increased productivity, and improved product quality.
Top product features:
- Output Power of 2 hp provides sufficient force for demanding applications
- Maximum Flow Rate of 35.3 cfm enables efficient evacuation of large volumes
- Maximum Vacuum of 29.91 in Hg allows for precise and effective vacuum creation
Top product applications:
- Die Casting
- Vacuum Packaging
- Vacuum Thermoforming
This Rietschle Thomas vacuum pump is rated at 2 hp output power, running on 230/460V AC, three-phase, with a current rating of 4.85/2.8 A and 6.2/3.1 A depending on voltage. Frequency is 50/60 Hz, with a maximum speed of 1,450 RPM or 1,740 RPM. Maximum flow rate is 35.3 cfm, and maximum vacuum is rated at 0.1 mbar (29.91 in Hg maximum operating pressure). The pump has a 1-1/4 in NPT inlet and a 1-1/4 in FBSP outlet, with an oil capacity of 96 oz and a fine mesh filter. It includes a filter, oil, oil separator, and vacuum non-return valve. The motor is TEFC continuous duty, with a gas ballast valve type. Sound level is rated at 64 dBA and 67 dBA (max. 67 dBA). Operating temperature range is 12°C to 40°C. The housing has a painted finish, and the unit is certified to EN 1012-2:1996+A1:2009 standards. Country of origin is Germany. Overall dimensions are 24.68 in L x 13.12 in W x 10.5 in H. Specifications Output Power: 2 hp | Voltage: 230/460V AC | Phase: Three | Frequency: 50/60 Hz Current Rating: 4.85/2.8 A, 6.2/3.1 A Maximum Flow Rate: 35.3 cfm | Maximum Speed: 1,450 RPM, 1,740 RPM Maximum Vacuum: 0.1 mbar | Maximum Operating Pressure: 29.91 in Hg Inlet: 1-1/4 in NPT | Outlet: 1-1/4 in FBSP Oil Capacity: 96 oz | Filter Type: Fine Mesh | Fluid Compatibility: Oil | Runs Dry: No Motor Type: TEFC Continuous Duty | Valve Type: Gas Ballast Sound Level: 64 dBA, 67 dBA (max. 67 dBA) Operating Temp Range: 12°C to 40°C Finish: Paint | Standards: EN 1012-2:1996+A1:2009 Country of Origin: Germany Dimensions: 24.68 in L x 13.12 in W x 10.5 in H
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 31.80
- Package Height: 17.20
- Package Weight: 173.00
