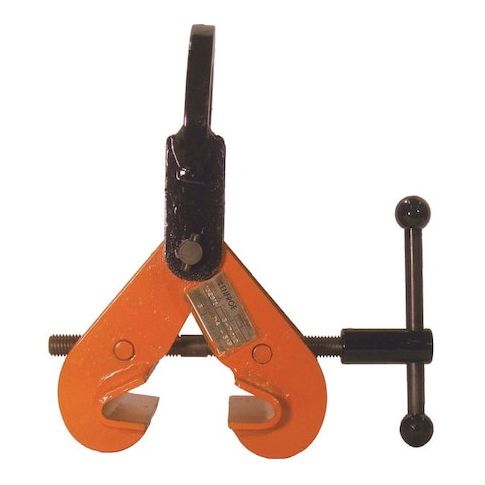

Beam Clamp, 6000 lb, Vertical, 3 to 7-1/2In MPN:BC-03.00-A
Beam Clamp, 6000 lb, Vertical, 3 to 7-1/2In
The Renfroe Beam Clamp is a heavy-duty lifting solution designed for vertical applications. With a working load limit of 6,000 pounds, it securely attaches to flat beams with a thickness range of 1/4 to 1/2 inch. The clamp's compact design allows for easy installation and removal, making it ideal for use in construction, manufacturing, and maintenance settings. Its versatility enables it to be mounted on either the top or bottom of the beam, providing flexibility in a variety of applications such as heavy equipment lifting, material handling, and machinery installation.
Top product features:
- Clamp Type Beam Flange Clamp
- Maximum Jaw Opening 7 1/2 in
- Working Load Limit 6,000 lb
Top product applications:
- Construction Site
- Lifting and moving heavy steel beams
- Manufacturing and assembly plants
Beam Lifting Clamp, Clamp Type Beam Flange Clamp, Material Steel, Maximum Jaw Opening 7 1/2 in, Minimum Jaw Opening 3 in, Working Load Limit 6,000 lb, Attachment Type Load Ring, Maximum Beam Thickness 1/2 in, Compatible Beam Shape Flat, Minimum Beam Thickness 1/4 in, Overall Height 12 in, Attachment Diameter 3 in, Beam Mount Location Bottom, Top, Maximum Beam Width 1 3/4 in, Minimum Beam Width 3 in, Overall Depth 5 1/4 in, Overall Width 11 7/8 in, Standards ASME
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.60
- Package Width: 5.60
- Package Height: 11.40
- Package Weight: 13.40
Product info last updated on March 1, 2026 8:57pm UTC
Category: Lifting, Pulling and Positioning
