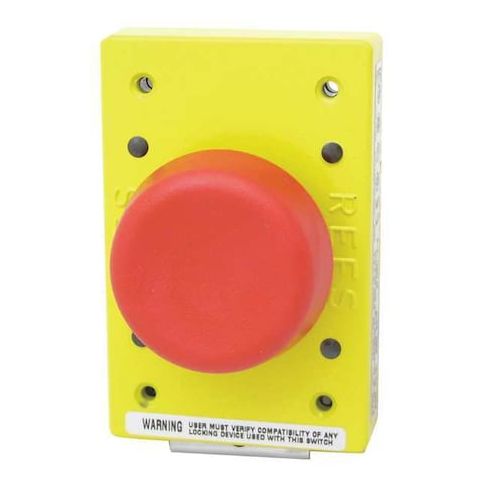

Emergency Stop Push Button, Mushroom Head, Momentary Action, Not Applicable Release, Red MPN:02182-202
Emergency Stop Push Button, Mushroom Head, Momentary Action, Not Applicable Release, Red
This Emergency Stop Push Button is a crucial safety device designed for industrial environments. Its momentary action and mushroom plunger type operator provide a clear and intuitive way to initiate emergency stops, reducing the risk of accidents and injuries. Made from durable plastic and die-cast zinc materials, this button can withstand harsh conditions and heavy use. Suitable for applications in manufacturing, construction, and other high-risk industries, it meets stringent standards including OSHA, UL 508, and CE certification. Its compact size and easy installation make it an ideal choice for a wide range of applications, from machinery to equipment.
Top product features:
- Momentary action provides a temporary stop function
- 57mm mushroom plunger type of operator provides a distinct and easily identifiable stop button
- 1NO/1NC contact form allows for both normally open and normally closed electrical connections
Top product applications:
- Machine Guarding Systems
- Industrial Automation Control Panels
- Robotics and CNC Machine Safety
Emergency Stop Push Button, 57 mm, Momentary Action, 57mm Mushroom Plunger Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Die Cast Zinc, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/N300, Number of Operators 1, NEMA Rating 12, 13, IP Rating IP65, Legend Not Applicable, Standards ANSI B11.1, CE, CSA C22.2 LR3648, IEC/EN 60947-5-5, OSHA, UL 508, Terminal Connection Pressure Plate
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 3.00
- Package Weight: 2.00
Product info last updated on February 7, 2026 11:03pm UTC
Category: Industrial Electrical Controls and Automation
