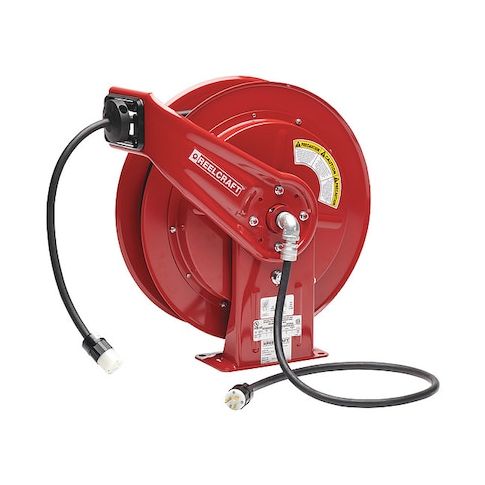

Spring Retractable Cord Reel with 100 ft. Cord 1-Outlet 12/3 MPN:L 70100 123 3A
Free Shipping
In Stock
The Reelcraft Series L 70000 Spring Retractable Cord Reel is a reliable and efficient solution for indoor applications, providing a 100 ft. 12/3 SEOOW cord with a single receptacle. The redesigned latching mechanism and containerized drive spring ensure a longer service life and easier maintenance. The guide arm adjusts to seven positions, accommodating various mounting locations and applications. Ideal for use in offices, workshops, and industrial settings, this cord reel offers a smoother spool rotation and easier operation, making it a valuable addition to any facility. Made in the USA, it meets UL/CSA approval standards.
Top product features:
- Redesigned latching mechanism provides longer service life for the latch components.
- Guide rollers have a one-piece design and stainless steel pins, offering greater strength and easier serviceability.
- Containerized drive spring provides safer and easier handling during maintenance.
Top product applications:
- Indoor construction sites
- Industrial manufacturing facilities
- Warehouse and distribution centers
The REELCRAFT L 70100 123 3A is a spring retractable cord reel for indoor power distribution. It includes 100 ft. of 12/3 SEOOW black cord with a single NEMA 5-20R industrial connector receptacle and a 5 ft. feeder cord with a NEMA 5-20P grounding plug. This reel is rated for 20 amps, 125V, and 2500 watts, and uses a ratchet lock latching mechanism to hold the cord at the needed length. The steel reel can be mounted on a bench, ceiling, floor, or wall.
Key Features of the REELCRAFT L 70100 123 3A:
- 100 ft. retractable cord: Provides extended reach for powered equipment and retracts by spring action when not in use.
- 12/3 SEOOW cord: Three-conductor, 12 AWG cord construction.
- Single receptacle: Equipped with one NEMA 5-20R outlet on the retractable cord end.
- 5 ft. feeder cord: Includes a NEMA 5-20P grounding plug for power input.
- 20 amp capacity: Rated for 20A operation at 125V, with a 2500 watt capacity.
- Ratchet lock: Latching mechanism holds the cord at selected lengths during use.
- Steel reel construction: Reel material is steel, with a steel electrical enclosure and heavy steel frame components.
- Adjustable guide arm: Guide arm can be set in seven positions to suit different mounting orientations.
- Sealed ball bearings: Two sealed ball bearings support smoother spool rotation.
- Mounting options: Designed for bench, ceiling, floor, or wall mounting.
- Indoor use: For indoor, non-weather-tight applications only.
- Standards: UL and CSA.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.90
- Package Width: 14.10
- Package Height: 23.70
- Package Weight: 80.00
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
