Spring Return Hose Reel, 3/8 in Hose Diameter, 35 ft Length, 300 psi Max. Pressure, Brass, Red MPN:5635 OLP
Free Shipping
In Stock
The Reelcraft Series 5000 Spring Return Hose Reel is a durable and compact solution for a wide range of applications with critical space requirements. Suitable for air or water service, this hose reel features a 3/8 in. x 35 ft. PVC hose, a reliable speed latch, and individually powder-coated steel components for maximum protection. The reel's guide arm adjusts to two positions, allowing for flexibility and ease of use. Ideal for applications in industries such as manufacturing, construction, and agriculture, this hose reel provides a reliable and efficient solution for managing hoses and reducing downtime. Made in the USA.
Top product features:
- The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- The bent tube swivel design offers a smooth hose transition onto the spool
- The reliable speed latch allows for positive locking of the spool in two positions per rotation
Top product applications:
- Industrial settings such as manufacturing plants and warehouses
- Laboratories and research facilities
- Hospitals and healthcare facilities

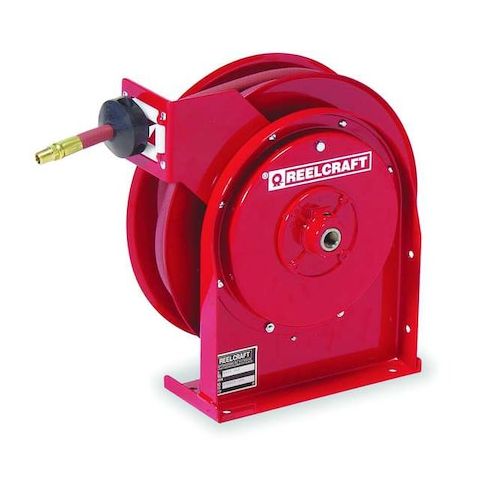

The REELCRAFT 5635 OLP is a stationary spring return hose reel with a 35 ft x 3/8 in I.D. PVC hose for air or water service. It can be mounted to a ceiling, floor, wall, or truck and uses a base-plumbed design with a bent tube swivel to route hose onto the spool. The swivel is positioned inside the spool, and the reel includes a hose stop and bumper. This open-style reel is made from steel with a powder-coated finish and has a maximum operating pressure of 300 psi and an operating temperature range of 32 to 150 degrees F.
Key features:
- Spring return drive: Retracts the hose back onto the reel after use.
- 35 ft PVC hose included: 3/8 in I.D. red hose for air and water applications.
- Mounting options: Designed for ceiling, floor, wall, or truck mounting.
- Base-plumbed inlet: Hose is plumbed into the base to reduce stress on the swivel.
- Bent tube swivel: Supports a smooth hose transition onto the spool.
- Protected swivel: Swivel is nested inside the spool to reduce exposure to impact.
- Latch mechanism: Quiet, spring-loaded latch locks the spool in two positions per rotation.
- Adjustable guide arm: Single guide arm adjusts to two positions.
- Steel construction: Carbon steel reel with steel base, upright, guide arm, and spool.
- Powder-coated finish: Coated steel components help resist corrosion.
- Connection sizes: Reel inlet is 3/8 in FNPT
- hose outlet is 1/4 in MNPT with brass NPT fittings.
- Dimensions: 14-1/4 in L x 6-1/8 in W x 14-3/8 in H
- weight is 25 lb.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 14.70
- Package Height: 6.50
- Package Weight: 24.58
