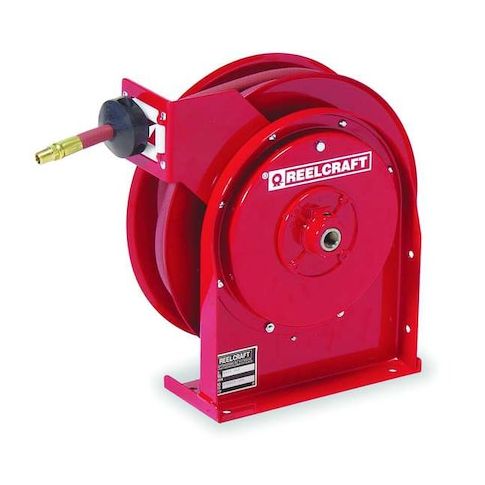

Spring Return Hose Reel, 3/8 in Hose Diameter, 25 ft Length, 300 psi Max. Pressure, Brass, Red MPN:4625 OLP
Free Shipping
In Stock
The Spring Return Hose Reel from Reelcraft is a compact and durable solution for a wide range of applications, including air and water service. Its unique design features a bent tube swivel that eliminates undue stress on the swivel and provides a smooth hose transition onto the spool. The reel is made from high-quality steel and PVC materials, ensuring maximum protection from corrosion and consistent performance. Ideal for applications with critical space requirements, this reel is perfect for industries such as manufacturing, laboratories, and construction, where reliability and efficiency are paramount.
Top product features:
- Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- The bent tube swivel design offers a smooth hose transition onto the spool
- The reliable speed latch allows for positive locking of the spool in two positions per rotation
Top product applications:
- Industrial Air Compressor Systems
- Hydraulic Power Units
- Water Treatment Plants
The REELCRAFT 4625 OLP is a spring return hose reel with a 25 ft, 3/8 in I.D. PVC hose for air or water service only. It has a stationary base and can be mounted on a ceiling, floor, wall, or truck. The reel includes a locking, spring-loaded latch and is built with a steel frame and spool with a powder-coated finish. The hose is plumbed into the base to reduce stress on the swivel, and the swivel is positioned inside the spool with a bent tube design for a smoother hose path.
Key Features:
- Hose included: 25 ft red PVC hose with 3/8 in inside diameter and 1/4 in male NPT ends.
- Media compatibility: For air or water service only.
- Pressure and temperature: Rated for up to 300 psi, with an operating temperature range of 32 to 150 degrees F.
- Mounting options: Designed for ceiling, floor, wall, or vehicle/truck mounting.
- Construction: Steel reel with powder-coated components
- carbon steel reel material.
- Latch system: Spring-loaded locking latch with two locking positions per rotation.
- Swivel and bearings: Brass swivel with permanently lubricated bearings.
- Connections: Reel inlet is 3/8 in female NPT
- fittings are 1/4 in NPT x 1/4 in NPT.
- Form factor: Open reel design with overall dimensions of 12 5/8 in L x 5 5/8 in W x 12 7/8 in H.
- Included components: Hose, hose stop, and bumper.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 13.50
- Package Height: 6.00
- Package Weight: 19.26
