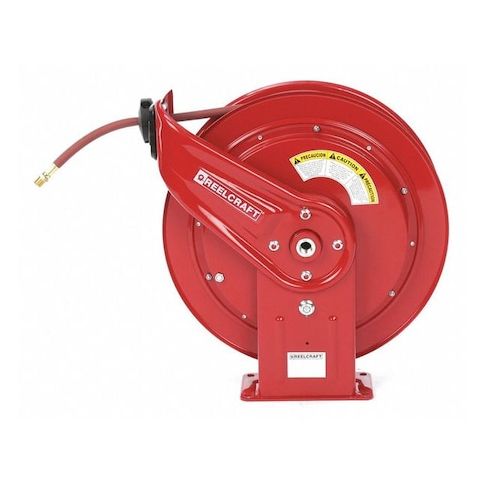

Spring Return Hose Reel, 3/8 in Hose Diameter, 100 ft Length, 300 psi Max. Pressure, Red MPN:HD76100 OLP
Free Shipping
In Stock
The Reelcraft Spring Return Hose Reel is a heavy-duty solution for managing 3/8 in. hose in air or water service applications. Its compact design and rugged construction make it ideal for use in a variety of settings, including industrial, commercial, and construction environments. The reel's guide rollers and containerized drive spring simplify maintenance and ensure smooth operation. With a 100 ft. length and 300 psi max. pressure, this reel is perfect for applications that require a reliable and efficient way to manage hose. Its Made in the USA quality and durable construction ensure years of trouble-free service.
Top product features:
- The Reelcraft Series HD70000 hose reels incorporate a heavy-duty base design, all-steel construction and a baked-on powder coat finish to produce a rugged, corrosion-resistant product.
- The redesigned latching mechanism provides longer service life for the latch components.
- The guide rollers have a one-piece design and stainless steel pins, offering greater strength and easier serviceability.
Top product applications:
- Air Compressor Service
- Industrial Hydraulics
- Water Supply Systems
The REELCRAFT HD76100 OLP is a spring return hose reel for air or water service, supplied with a 3/8 in. I.D. x 100 ft PVC hose. It has a stationary steel reel with a powder-coated finish and can be mounted on a bench or truck, or to a ceiling, floor, or wall. The reel uses a spring-loaded locking latch and includes a hose stop and bumper.
Key features of the REELCRAFT HD76100 OLP:
- Spring return drive: Rewinds the hose onto the reel after use.
- 100 ft hose included: Comes with a red PVC hose sized 3/8 in. I.D. for air or water service only.
- 300 psi maximum pressure: Rated for operating pressures up to 300 psi.
- 32 to 150 degrees F operating range: Suitable for use within the listed temperature limits.
- Steel construction: Carbon steel reel with all-steel frame components.
- Powder-coated finish: Helps resist corrosion on the reel exterior.
- Ball bearing design: Permanently lubricated ball bearings support smoother spool rotation.
- Adjustable guide arm: Single guide arm can be set in seven positions.
- 1/2 in. NPT connections: Reel inlet is 1/2 in. FNPT with 1/2 in. NPT male hose ends.
- Open reel design: Non-enclosed reel with single pedestal base.
- Mounting pattern: Four 1/2 in. mounting holes with 7 13/16 in. x 3 7/8 in. center-to-center spacing.
- Overall size: Measures 19 3/4 in. L x 8 1/4 in. W x 20 1/4 in. H.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.40
- Package Width: 23.80
- Package Height: 17.10
- Package Weight: 62.00
