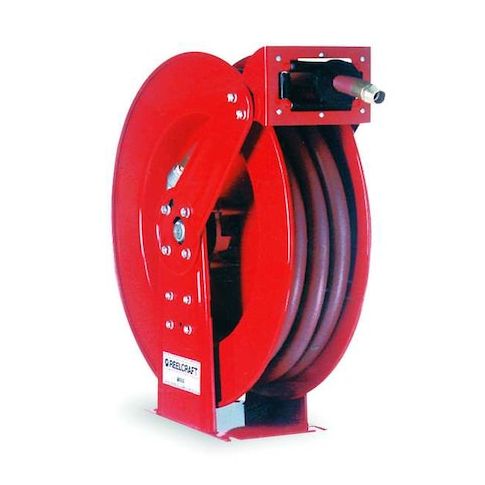

Spring Return Hose Reel, 1/2 in Hose Diameter, 100 ft Length, 300 psi Max. Pressure, Red MPN:82100 OLP

• The REELCRAFT 82100 OLP is a spring return hose reel for air and water service, supplied with a 1/2 in. I.D. x 100 ft PVC hose. It has a stationary dual pedestal design for wall, floor, ceiling, bench, or truck mounting, and includes a guide arm that can be positioned in four locations. The reel is open-style and constructed with a steel frame and spool, with a powder-coated finish and corrosion-resistant design.

  Key Features of the REELCRAFT 82100 OLP Spring Return Hose Reel:


  • Spring return reel: Auto retractable design rewinds the hose after use.
  • Included hose: Comes with a red 1/2 in. I.D. x 100 ft PVC hose for air or water service.
  • Pressure and temperature: Rated for up to 300 psi, with an operating temperature range of 32 to 150 degrees F.
  • Connections: 1/2 in. reel inlet with 1/2 in. NPT fittings
  • hose outlet is 1/2 in. MNPT.
  • Swivel and bearings: Full-flow, stress-free swivel design with nickel-plated steel swivel and permanently lubricated ball bearings.
  • Mounting options: Can be mounted to wall, floor, ceiling, bench, or truck applications using the 4-hole base.
  • Construction: Dual pedestal carbon steel reel with powder-coated finish
  • base, upright, guide arm, and spool are steel.
  • Guide arm: Single guide arm adjusts to 4 different positions to suit the mounting orientation.
  • Included components: Supplied with hose, hose stop, and bumper.
  • Overall size: 24 in. L x 10 1/2 in. W x 25 3/8 in. H
  • reel weight is 95 lb.
