Spring Return Hose Reel, 3/8 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Brass MPN:RT650-OLP
Free Shipping
In Stock
The Reelcraft Series RT Spring Return Hose Reel is a reliable and durable solution for industrial and commercial applications that require a medium-duty, lighter-weight hose reel. Its rugged construction and powder-coated steel components ensure maximum protection from corrosion, while the widened ratchet and latch pawl design increases service life. Suitable for air or water service, this reel is ideal for use in factories, warehouses, and laboratories, providing a convenient and efficient way to manage hoses and reduce wear and tear. Its compact design and adjustable guide arm make it easy to install and use.
Top product features:
- The spool is constructed from a rugged engineered plastic.
- The industrial-grade drive spring is completely containerized and permanently sealed.
- The guide arm adjusts to seven positions.
Top product applications:
- Air Compressor Stations
- Water Treatment Plants
- Industrial Cleaning Operations

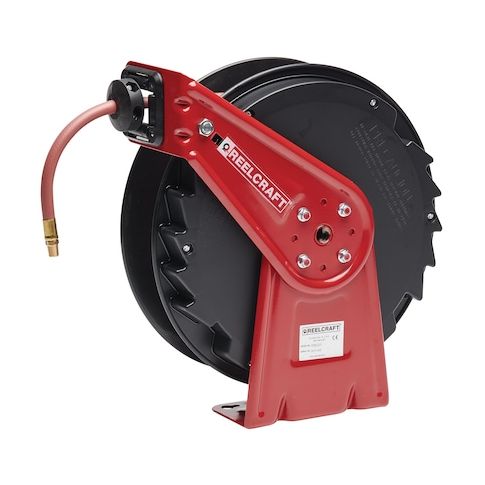

The REELCRAFT RT650-OLP is a spring return hose reel for air or water service in industrial and commercial settings. It includes a 50 ft x 3/8 in I.D. PVC hose and uses a stationary base for ceiling, floor, or wall mounting. This light-duty reel has an open design, a locking spring-loaded latch, and a maximum operating pressure of 300 psi with an operating temperature range of 32 to 150 degrees F.
Key Features of the REELCRAFT RT650-OLP Spring Return Hose Reel:
- Spring return drive: Retracts the hose using an enclosed, permanently sealed industrial-grade drive spring.
- Included hose: Supplied with a red 3/8 in x 50 ft PVC hose for air or water applications.
- Mounting options: Can be mounted to a ceiling, floor, or wall with a stationary base.
- Adjustable guide arm: Single guide arm adjusts to seven positions for hose payout direction.
- Corrosion-resistant construction: Powder-coated steel components and a rugged engineered plastic spool help resist premature corrosion.
- Latch design: Locking, spring-loaded latch with widened ratchet and latch pawl design to reduce wear.
- Connection details: Reel inlet is 1/2 in FNPT
- hose outlet is 1/4 in MNPT with brass male NPT fittings.
- Bearing and swivel design: Permanently lubricated bearings and base-plumbed inlet help reduce stress on the swivel.
- Included accessories: Comes with a hose stop bumper.
- Size and weight: Overall dimensions are 16 1/2 in L x 6 1/4 in W x 17 7/8 in H
- weight is 27 lb.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.60
- Package Width: 8.20
- Package Height: 21.90
- Package Weight: 20.00
