Hose Reel Swivel, 1/4 in FNPT, 3/4 in MUNF, For 4000/5000/RT Reel Series, 500 psi Max Op Pressure MPN:S600886

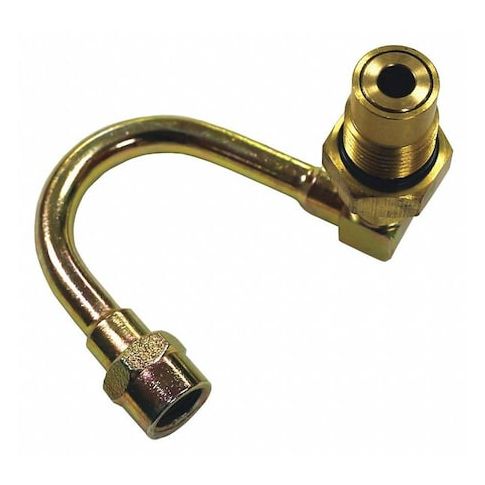

The REELCRAFT S600886 is a 90-degree swivel assembly used as a pneumatic tool part for specified Reelcraft reel series and models. It has a 1/4 in. NPT female inlet and a 3/4 in.-16 UNF male outlet, with a maximum operating pressure of 500 psi. The assembly includes an O-ring and seal, and is constructed with a brass body and nitrile seal material.

Key features:

• 90-degree configuration: Changes direction at a right angle within the connection.
• Connection sizes: 1/4 in.-18 FNPT inlet x 3/4 in.-16 MUNF outlet.
• Pressure rating: Rated for operation from 0 to 500 psi.
• Temperature range: Operates from -40 to 210 degrees F.
• Seal material: Nitrile seal is included.
• Includes: O-ring and seal.
• Compatible reel series: 4000, 5000, and RT.
• For use with Reelcraft models: Includes 4400 OLP, 4420 OLP, 4425 OLP, 4435 OLP, 4600 OLP, 4615 OLP, 4617 OLP, 4625 OLP, 5400 OLP, 5450 ELP, 5450 OLP, 5600 OLP, 5605 OLP, 5635 OLP, 5650 OLP, H16000, and RT403-OLP through RT650-OLP series models as listed.
