Spring Return Hose Reel, 1 in Hose Diameter, 50 ft Length, 50 psi Max. Pressure, Red MPN:FD84050 OLP

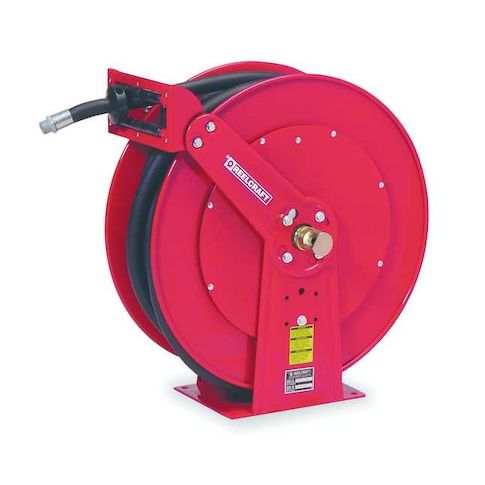

The REELCRAFT FD84050 OLP is a spring return hose reel for fuel delivery applications. It is a stationary, open-style reel supplied with a 50 ft synthetic rubber hose with a 1 in I.D., 1 in MNPT hose outlet, and 1 in FNPT reel inlet. The reel uses Viton seals and a full flow, ball-bearing swivel, and it can be mounted on a bench, truck, ceiling, floor, or wall for mobile or permanent-mount use. This reel is intended for fuel service, including E85, and is noted as not recommended for jet fuel.

Key Features of the REELCRAFT FD84050 OLP Spring Return Hose Reel:

• Spring return drive: Automatically retracts the hose onto the reel.
• 50 ft x 1 in hose: Includes a synthetic rubber hose with 1 in inside diameter for fuel transfer applications.
• Viton seal type: Used in the reel’s fuel delivery design.
• Full flow swivel: Ball-bearing, stress-free swivel design supports hose movement during operation.
• Locking latch: Spring-loaded latch with cast aluminum latch and ratchet components.
• Corrosion-resistant construction: Powder-coated components and steel reel construction.
• Mounting options: Can be mounted to bench and truck, ceiling, floor, or wall surfaces.
• Connection sizes: 1 in FNPT reel inlet and 1 in MNPT hose outlet with NPT fittings.
• Operating range: Maximum operating pressure of 250 psi and operating temperatures from -25°F to 150°F.
• Reel dimensions: 24 in L x 15 3/4 in W x 25 3/8 in H.
