Spring Return Hose Reel, 3/8 in Hose Diameter, 100 ft Length, 300 psi Max. Pressure, Red MPN:81100 OLP
Free Shipping
In Stock
The Reelcraft Series 80000 spring retractable hose reel is a heavy-duty solution for a wide range of applications. Suitable for harsh environments, this reel features a robust dual pedestal base, five-in-one aluminum casting, and sealed ball bearings for smooth rotation. The included 3/8 in. x 100 ft. PVC hose is perfect for air or water service. The versatile reel inlet can be connected on either side, and the guide arm adjusts to four positions. Ideal for industries such as manufacturing, construction, and maintenance, this reel offers a long-lasting, corrosion-resistant finish and is made in the USA.
Top product features:
- Robust, dual pedestal base mounts to any load-bearing surface – built for maximum durability and offers performance and longevity in the harshest conditions
- Five-in-one, heat treated aluminum casting saves space and eliminates leaks
- Guide arm adjusts to 4 different positions
Top product applications:
- Fuel delivery
- Pressure wash
- Gas/cable welding

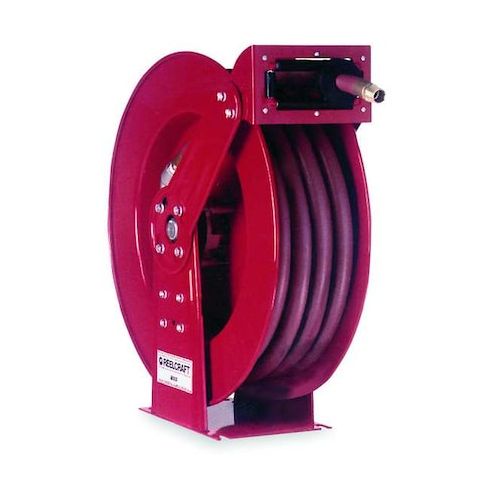

REELCRAFT 81100 OLP is a spring return hose reel for air and water service that includes a 3/8 in. I.D. x 100 ft PVC hose. It uses a dual pedestal, open-frame steel reel with a stationary base and can be mounted on a bench or truck, ceiling, floor, or wall. The reel has a locking, spring-loaded latch, a 1/2 in. FNPT inlet that can be connected from either side, and a 3/8 in. MNPT hose outlet. It is rated for a maximum operating pressure of 300 psi and a maximum operating temperature of 150 degrees F.
Key Features:
- Spring return drive: Retracts the hose back onto the reel using spring-powered rewind.
- Included hose: Comes with a red 3/8 in. I.D. x 100 ft PVC hose for air and water applications.
- Mounting options: Designed for bench and truck, ceiling, floor, or wall mounting.
- Dual pedestal steel construction: Carbon steel reel with steel base, upright, guide arm, and spool.
- Powder-coated finish: Coated steel components provide a corrosion-resistant finish.
- Ball bearing design: Two permanently lubricated, sealed ball bearings support smooth reel rotation.
- Adjustable guide arm: Guide arm can be set in 4 different positions to suit installation layout.
- Connection sizes: Reel inlet is 1/2 in. FNPT
- hose fittings are 3/8 in. male NPT brass.
- Latch mechanism: Spring-loaded locking latch holds the hose at the selected length.
- Operating range: Rated for 300 psi, with an operating temperature range of 32 to 150 degrees F.
- Overall size: Measures 24 in. L x 10 1/2 in. W x 25 3/8 in. H.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.00
- Package Width: 0.50
- Package Height: 26.75
- Package Weight: 92.00
