Reel, Twin Hose, 7 In MPN:TW7450 OLPT
Free Shipping
In Stock
For demanding gas welding applications, Reelcraft's Series TW spring retractable hose reels offer superior performance and reliability. Featuring an independent dual swivel body, these reels ensure positive separation of gases and prevent leakage. With a reinforced steel base and individually powder-coated components, they provide maximum strength and corrosion resistance. Ideal for use in heavy-duty industries such as construction, manufacturing, and repair shops, these reels are designed to withstand the rigors of frequent use. Their compact design and easy installation make them a convenient and practical solution for a variety of gas welding applications.
Top product features:
- Independent dual swivel body manufactured from aluminum and hard-coated for wear resistance assures positive separation of gases due to its unique design.
- Double-sealed, special molded O-rings prevent leakage.
- Individually powder coated components offer the maximum protection from premature corrosion.
Top product applications:
- Gas welding
- Industrial manufacturing
- Automotive repair

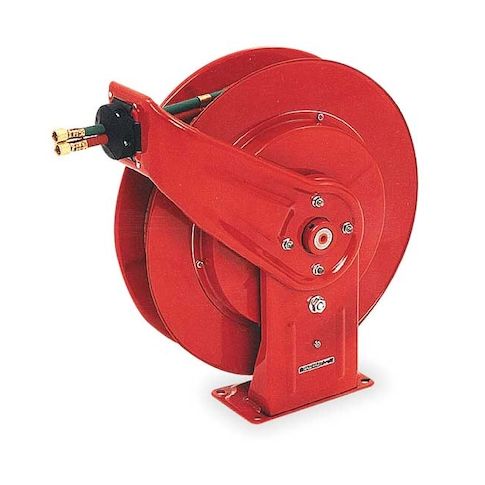

The REELCRAFT TW7450 OLPT is a spring-return welding hose reel designed for dual hose service with oxygen, acetylene, propane, Mapp, natural gas, and other fuel gases. It includes two 50 ft Grade T rubber hoses with 1/4 in inside diameter and 9/16 in female UNF fittings. The reel uses an independent dual aluminum swivel body with a hard-coated finish to keep gases separated, and the acetylene side is identified with machined grooves on the swivel body and inlet for correct connection. This stationary reel can be mounted on a bench or truck, ceiling, floor, or wall.
Key Features of the REELCRAFT TW7450 OLPT Welding Hose Reel:
- Dual hose configuration: Includes red and green 50 ft hoses for welding gas applications.
- Spring return drive: Retracts the hose automatically with a locking latch to hold the selected length.
- Independent dual swivel: Aluminum swivel body with hard-coated wear surface keeps the gas paths separated.
- Leak-resistant sealing: Double-sealed molded O-rings with nitrile seals are used at the swivel.
- Connections: 1/4 in female NPT reel inlet and 9/16 in UNF outlet
- hose fittings are 9/16 in female UNF brass.
- Reel construction: Steel reel with powder-coated finish and welded steel base.
- Mounting options: Can be mounted on a bench or truck, ceiling, floor, or wall.
- Operating limits: Rated for 200 psi with an operating temperature range of -40 to 150 degrees F.
- Dimensions: 19 3/4 in L x 7 3/8 in W x 20 1/4 in H
- weight is 50 lb.
- Standards: UL Listed
- meets/exceeds R.M.A. and C.G.A. Type V.D. specifications.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 8.50
- Package Height: 22.60
- Package Weight: 53.35
