Spring Return Hose Reel, 3/4 in Hose Diameter, 25 ft Length, 50 psi Max. Pressure, Red MPN:F7925 OLP

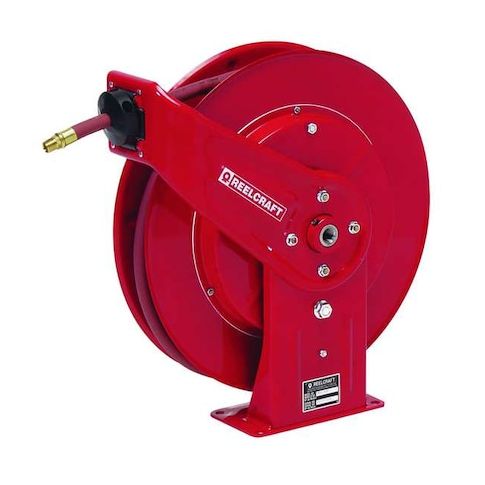

• The REELCRAFT F7925 OLP is a spring return hose reel for fuel delivery applications. It includes a 25 ft hose with 3/4 in inside diameter and 3/4 in NPT connections, and is designed for stationary mounting on walls, ceilings, floors, benches, or trucks. This open-style reel uses Viton seals and a ball-bearing style swivel, with a base-plumbed inlet that reduces stress on the swivel. It is intended for fuel service, including E85, and is not recommended for jet fuel.

  Key features of the REELCRAFT F7925 OLP:


  • Spring return drive: Automatically retracts the hose onto the reel after use.
  • Fuel application: Designed for fuel and chemical delivery service.
  • 25 ft hose capacity: Supplied with a 25 ft x 3/4 in I.D. hose.
  • 3/4 in NPT connections: Reel inlet is 3/4 in FNPT with 3/4 in MNPT hose end configuration.
  • Viton seals: Used for compatibility in fuel service applications.
  • Powder-coated steel construction: Steel components and carbon steel reel with a powder-coated finish and corrosion-resistant design.
  • Guide arm positions: Single guide arm adjusts to seven positions for different mounting orientations.
  • Permanently lubricated bearings: Bearing construction does not require routine relubrication.
  • Locking latch: Spring-loaded latch and ratchet mechanism holds the hose at the selected length.
  • Operating limits: Rated for 50 psi, with an operating temperature range of -25 degrees F to 150 degrees F.
  • Mounting details: Four mounting holes with 1/2 in diameter
  • suitable for wall, ceiling, floor, bench, and truck mounting.
  • Included components: Comes with hose and hose bumper.
