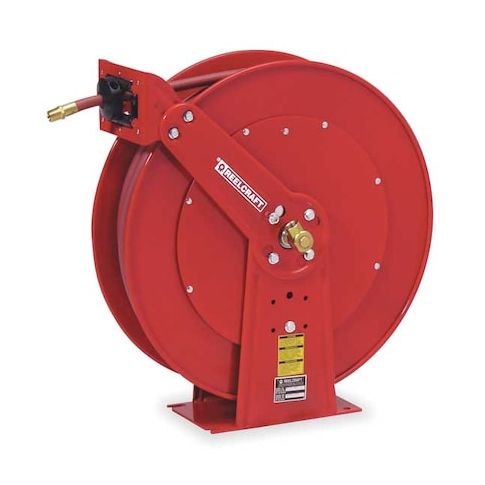

Spring Return Hose Reel, 3/4 in Hose Diameter, 75 ft Length, 250 psi Max. Pressure, Red MPN:D83075 OLP

• The REELCRAFT D83075 OLP is a spring return hose reel for air and water service that includes a 3/4 in. I.D. x 75 ft. PVC hose. It uses a stationary dual pedestal steel frame and can be mounted to wall, floor, ceiling, bench, or truck surfaces. The reel has a 3/4 in. female NPT inlet with a reversible left- or right-side connection option, a 3/4 in. outlet, and is rated for low-pressure applications up to 250 psi with an operating temperature range of 32 to 150 degrees F.

  Key Features:


  • Spring return drive: Retracts the hose automatically after use.
  • Included hose: Supplied with a red 3/4 in. x 75 ft. PVC hose for air or water service.
  • Mounting options: Can be installed on wall, floor, ceiling, bench, or truck mounts.
  • Dual pedestal construction: Steel pedestal design with double guide arm for supported hose handling.
  • Ball bearings: Permanently lubricated, sealed ball bearings support smooth reel rotation.
  • Powder-coated steel reel: Carbon steel housing and structural steel components with a corrosion-resistant powder-coated finish.
  • Connection size: 3/4 in. NPT inlet and outlet fittings
  • hose ends are 3/4 in. male NPT brass fittings.
  • Pressure and temperature: Maximum operating pressure of 250 psi and maximum operating temperature of 150 degrees F.
  • Adjustable guide arm: Guide arm can be positioned in 4 different locations.
  • Included components: Comes with hose, hose stop, and bumper.
  • Overall size: 24 in. L x 13 in. W x 25 3/8 in. H
  • reel weight is 102 lb.
  • Open reel design: Non-enclosed reel allows direct access to the spool and hose.
