Spring Return Hose Reel, 3/4 in Hose Diameter, 25 ft Length, 250 psi Max. Pressure, Red MPN:7925 OLP
Free Shipping
In Stock
The Reelcraft Series 7000 spring retractable hose reel is a robust and reliable solution for demanding applications. Ideal for air or water service, this 3/4 in. x 25 ft. PVC hose reel provides maximum protection from premature corrosion with individually powder-coated steel components. The adjustable guide arm and 11 gauge steel construction ensure easy use and durability. With a maximum pressure of 250 psi, this reel is perfect for a variety of applications, including industrial settings, maintenance, and repair. Made in the USA, this product offers a high-quality solution for any business or organization in need of a reliable hose reel.
Top product features:
- Individually powder-coated steel components provide maximum protection from premature corrosion.
- Inlet hose is plumbed into the base to eliminate the risk of stress on the swivel.
- Guide arm adjusts to seven positions.
Top product applications:
- Air Service
- Water Service
- Fuel Delivery

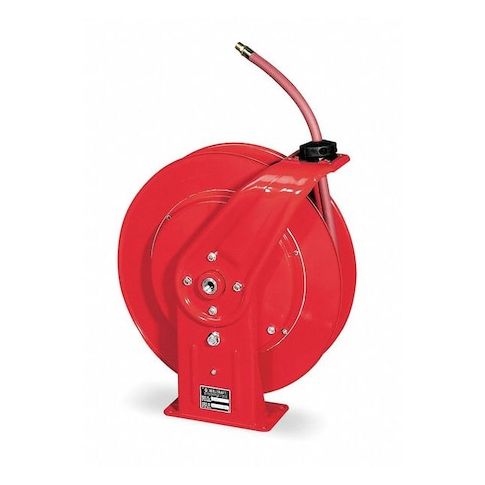

The REELCRAFT 7925 OLP is a spring return hose reel for air and water service, supplied with a 25 ft x 3/4 in I.D. PVC hose. It has a stationary steel reel with a powder-coated finish and an open design for mounting on a wall, ceiling, floor, bench, or truck. The inlet hose is routed through the base to reduce stress on the swivel, and the guide arm can be positioned in seven locations to suit different mounting orientations.
Key Features of the REELCRAFT 7925 OLP Spring Return Hose Reel:
- Application: Designed for air and water service.
- Spring return drive: Retracts the hose onto the reel.
- Included hose: Comes with a 25 ft, 3/4 in I.D. red PVC hose.
- Pressure and temperature: Rated for up to 250 psi and 150 degrees F, with a minimum operating temperature of 32 degrees F.
- Fittings: 3/4 in NPT connections with brass male hose ends and a 3/4 in FNPT reel inlet.
- Construction: Base plate, upright, and guide arm are made from 11 gauge steel
- spool is 16 gauge steel.
- Finish: Powder-coated steel components help resist corrosion.
- Guide arm: Single guide arm adjusts to seven positions.
- Latch: Spring-loaded locking latch holds the hose at the selected length.
- Bearings: Permanently lubricated bearing construction.
- Mounting: Can be mounted to wall, ceiling, floor, bench, or truck
- base has 4 mounting holes with 1/2 in diameter.
- Included accessories: Includes hose, bumper, and hose stop.
- Overall size: 19 3/4 in L x 7 in W x 20 1/4 in H
- weight is 47 lb.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 8.50
- Package Height: 22.70
- Package Weight: 49.00
