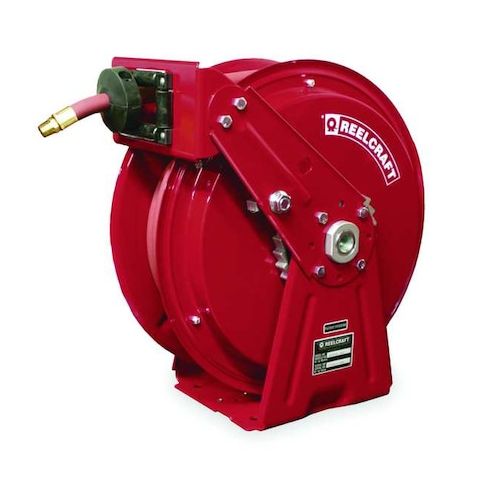

Spring Return Hose Reel, 1/2 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Red MPN:DP7850 OLP
Free Shipping
In Stock
Elevate your industrial operations with Reelcraft's Spring Return Hose Reel, designed for heavy-duty applications. This rugged, compact reel features a non-welded, interlocking base that withstands heavy vibration, making it ideal for truck-mounted applications. The reinforced steel guide arm and dual pedestal base ensure maximum strength and durability, while the superior latch spring design and long-life drive spring provide reliable performance. Suitable for a wide range of heavy-duty applications, including industrial, manufacturing, and construction, this hose reel is perfect for use in harsh environments, providing a reliable and efficient solution for fluid transfer and management.
Top product features:
- Reinforced steel construction with stamped ribs and gussets for maximum strength and lightest possible weight.
- Superior latch spring design with a life far exceeding conventional coil springs.
- Long life drive spring with a declutching arbor that eliminates reverse spring winding and a virtually unbreakable torsion latch spring.
Top product applications:
- Truck-mounted equipment applications
- Industrial manufacturing plants
- Heavy-duty construction sites
The REELCRAFT DP7850 OLP is a spring return hose reel for air and water service. It includes a 50 ft PVC hose with a 1/2 in inside diameter and 3/8 in male NPT end connections, and it mounts to benches and trucks, or to ceilings, floors, and walls. This compact dual pedestal reel has a stationary base, locking spring-loaded latch, and steel construction with a powder-coated finish. The manufacturer describes the non-welded interlocking base, reinforced guide arm, and dual pedestal design as built for heavy vibration, including truck-mounted applications.
Key Features:
- Spring return drive: Retracts the hose automatically after use.
- Air and water service: Designed for use with air or water media.
- 50 ft hose capacity: Includes a 50 ft PVC hose with 1/2 in I.D.
- Connection sizes: Reel inlet is 1/2 in FNPT
- hose ends are 3/8 in MNPT with brass fittings.
- Steel reel construction: Carbon steel reel with reinforced steel guide arm and dual pedestal base.
- Powder-coated finish: Corrosion-resistant finish on the reel exterior.
- Latch design: Spring-loaded locking latch with torsion-style latch spring.
- Drive spring design: Declutching arbor helps prevent reverse spring winding.
- Permanently lubricated bearings: Bearings are factory-lubricated for ongoing operation.
- Mounting options: Can be mounted on a bench, truck, ceiling, floor, or wall.
- Pressure and temperature: Rated to 300 psi
- operating temperature range 32 to 210 degrees F.
- Overall size: 16-1/2 in L x 9 in W x 17 in H
- weight is 53 lb.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 10.60
- Package Height: 21.50
- Package Weight: 54.30
