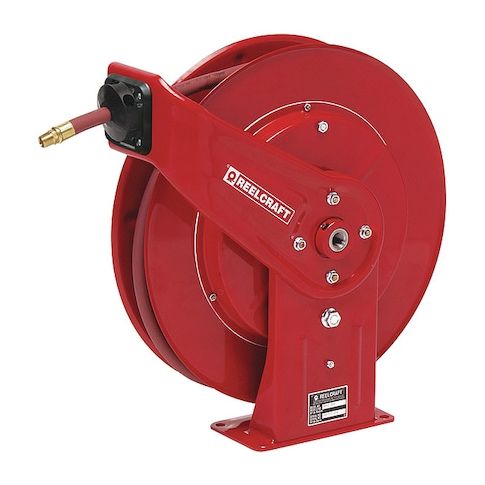

Hose Reel 1/2 Hose MPN:7850 OLP121
The Reelcraft Series 7000 spring retractable hose reel is a robust and reliable solution for demanding applications. Ideal for air or water service, this heavy-duty reel features individually powder-coated steel components for maximum protection against corrosion. The 1/2 in. x 50 ft. PVC hose is included, and the guide arm adjusts to seven positions for flexibility. Constructed from high-grade steel, this reel is built to withstand the toughest conditions. Suitable for a wide range of applications, including pressure wash, gas/cable welding, and fuel delivery, this reel is a valuable addition to any industrial or commercial setting.
Top product features:
- The base and guide arm are constructed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength.
- The spool is made of 16 gauge steel.
- The guide arm adjusts to seven positions.
Top product applications:
- Industrial Painting and Coating
- Pressure Washing
- Fuel Delivery
The REELCRAFT 7850 OLP121 is a spring return hose reel with a 50 ft x 1/2 in I.D. PVC hose for air or water service. It is a stationary, open-style reel made from carbon steel with a powder-coated finish, and it can be mounted on a ceiling, floor, wall, or vehicle. The inlet hose is routed into the base to reduce stress on the swivel, and the guide arm can be adjusted to seven positions.
Key Features:
- Spring return drive: Automatically retracts the hose onto the reel.
- Included hose: Comes with a red 1/2 in x 50 ft PVC hose and hose stop bumper.
- Application: For air and water service only.
- Pressure and temperature limits: Rated for up to 300 psi, with an operating temperature range of 32 to 150 degrees F.
- Reel construction: Carbon steel reel with powder-coated components and corrosion-resistant design.
- Mounting options: Can be used as a ceiling, floor, wall, or vehicle mount reel.
- Guide arm: Single guide arm adjusts to seven positions to suit mounting orientation.
- Connections: 1/2 in NPT x NPT fittings
- hose ends are 1/2 in male NPT brass fittings.
- Swivel: Nickel-plated steel swivel with 1/2 in female inlet and 1/2 in male outlet.
- Base and mounting: Stationary base with four 1/2 in mounting holes
- mounting hole centers are 7 13/16 in high x 3 7/8 in wide.
- Dimensions: 19 3/4 in L x 7 in W x 20 1/4 in H
- reel width is 7 in and reel diameter is 9 in.
- Bearing construction: Permanently lubricated bearings.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 9.50
- Package Height: 23.60
- Package Weight: 48.00
