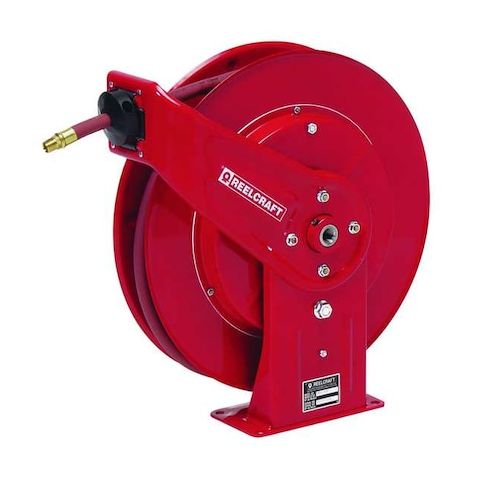

Spring Return Hose Reel, 1/2 in Hose Diameter, 50 ft Length, 2, 000 psi Max. Pressure, Red MPN:7850 OMP
Free Shipping
In Stock
The Reelcraft Series 7000 Spring Return Hose Reel is a robust and reliable solution for demanding applications. Ideal for use in industrial settings, this reel features a high-grade steel base and guide arm, ensuring maximum strength and durability. The included 1/2 in. x 50 ft. hose is designed for medium pressure applications, and the guide arm adjusts to seven positions for customizable setup. Suitable for a range of industries, including manufacturing, construction, and oil and gas, this reel provides a convenient and efficient way to manage hoses and reduce strain on equipment. Made in the USA, it's built to last.
Top product features:
- The base and guide arm are constructed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength.
- The inlet hose is plumbed into the base to eliminate the risk of stress on the swivel.
- The guide arm adjusts to seven positions.
Top product applications:
- Fuel Delivery
- Pressure Wash
- Gas/Cable Welding
The REELCRAFT 7850 OMP is a spring return hose reel for dispensing motor oil, transmission fluid, gear oil, and hydraulic fluid. It is a stationary, open-style reel that can be mounted to a wall, floor, ceiling, bench, or truck. This model includes a 50 ft x 1/2 in I.D. hose with 1/2 in NPT male ends and is built with a steel base, guide arm, and spool. The inlet hose is routed through the base to reduce stress on the swivel, and the guide arm can be adjusted to seven positions.
Key features of the REELCRAFT 7850 OMP:
- Spring return drive: Automatically retracts the hose after use.
- Included hose: 50 ft long, 1/2 in I.D., black synthetic rubber hose.
- Pressure and temperature: Rated up to 3,000 psi maximum operating pressure and 210 degrees F maximum operating temperature.
- Fittings: 1/2 in NPT x NPT connections with 1/2 in (F)NPT reel inlet and 1/2 in (M)NPT hose outlet.
- Construction: Carbon steel reel with powder-coated finish and corrosion-resistant steel components.
- Guide arm: Single guide arm adjusts to seven positions for different mounting orientations.
- Bearings: Permanently lubricated bearing construction.
- Mounting: Fits wall, floor, ceiling, bench, and truck mounting applications with 4 mounting holes.
- Included components: Supplied with hose and hose stop bumper.
- Overall size: 19 3/4 in L x 7 in W x 20 1/4 in H
- weight 57 lb.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.60
- Package Width: 8.80
- Package Height: 23.00
- Package Weight: 60.00
