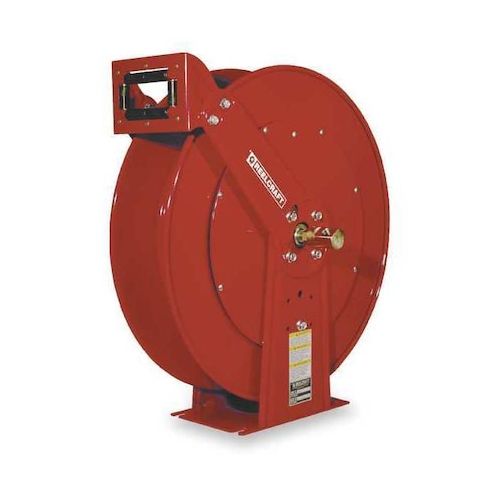

Spring Return Hose Reel, 3/8 in Hose Diameter, 100 ft Length, 5, 000 psi Max. Pressure, Red MPN:PW81000 OHP
Free Shipping
In Stock
The Spring Return Hose Reel from Reelcraft is a reliable and efficient solution for various applications. Perfect for agricultural, marine, equipment cleaning, and pressure washing tasks, this reel can handle up to 100 feet of tangle-free hose and withstand pressures up to 5,000 psi. Its high-pressure water swivel and full flow stress-free design ensure maximum product delivery and service life. Additionally, the reel's quality steel construction and powder-coated components provide protection against corrosion. With a compact design and easy operation, this reel is ideal for heavy-duty use in demanding environments.
Top product features:
- Compact design
- Quality steel construction
- Full flow stress-free swivel design
Top product applications:
- Agricultural applications
- Marine applications
- Equipment cleaning applications
REELCRAFT PW81000 OHP is a spring return hose reel for water and pressure wash service. It is built with a steel frame and powder-coated finish, and it is designed to handle up to 100 ft of 3/8 in I.D. hose. The reel includes a high-pressure water swivel with a 1/2 in (F)NPT inlet and 3/8 in (F)NPT outlet, and it is rated for operation up to 5,000 psi. This stationary reel can be mounted on a bench, truck, ceiling, floor, or wall for pressure washer and equipment cleaning setups.
Key Features:
- Spring return drive: Retracts the hose automatically after use.
- Hose capacity: Holds up to 100 ft of 3/8 in I.D. hose.
- Pressure rating: Rated for up to 5,000 psi for pressure wash applications.
- Swivel construction: High-pressure nickel-plated steel water swivel with full-flow design for water service.
- Connection sizes: Reel inlet is 1/2 in (F)NPT
- hose outlet is 3/8 in (F)NPT
- hose end connection is 3/8 in (M)NPT.
- Material and finish: Steel reel construction with powder-coated components and corrosion-resistant design.
- Bearing system: Ball bearings are permanently lubricated.
- Latch: Spring-loaded locking latch helps hold the hose at the selected length.
- Mounting options: Can be mounted on a bench, truck, ceiling, floor, or wall.
- Operating temperature range: 32 to 210 degrees F.
- Overall size: 24 in L x 10 1/2 in W x 25 3/8 in H.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.20
- Package Width: 11.00
- Package Height: 28.50
- Package Weight: 81.00
