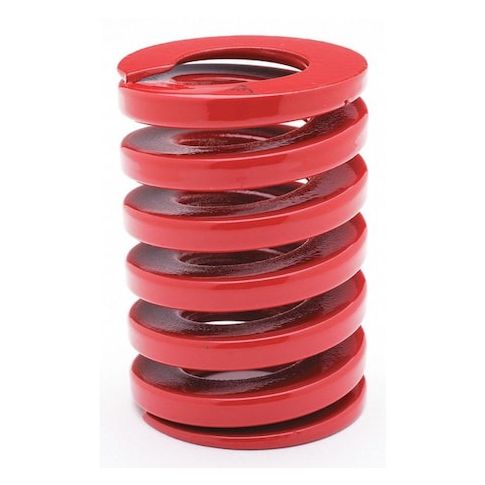

Die Spring, Red, Overall 1-13/16" L, PK10 MPN:ASM008030
Die Spring, Red, Overall 1-13/16" L, PK10
The Raymond Die Spring is a heavy-duty, oil-tempered chrome silicone spring designed for demanding applications. Its large outside diameter and closed ground end provide a secure fit in machinery and equipment. With a spring rate of 9 lb./in. and deflection of 0.24, this spring offers consistent performance and reliability. Suitable for use in industrial settings, it meets or exceeds ASTM A313 and AMS 5688 standards. Its compact size and lightweight design make it easy to integrate into existing systems, while its durability ensures long-lasting operation. Ideal for use in machinery, tools, and equipment requiring high-performance springs.
Top product features:
- Oil Tempered Chrome Silicone construction
- Meets/Exceeds ASTM A313 and AMS 5688 standards
- Deflection @ Load 0.24 with a Spring Rate of 9 lb./in.
Top product applications:
- Automotive components
- Industrial machinery
- Medical equipment
Die Spring, Extra Heavy Duty, Color Red, Oil Tempered Chrome Silicone, Finish Plain, Overall Length 1-13/16 In., Outside Dia. 5/16 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Deflection @ Load 0.24, Spring Rate 9 lb./in., Meets/Exceeds ASTM A313, AMS 5688, Package Quantity 10
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 7
- Unit of Measure: PK
- Package Length: 0.32
- Package Width: 1.18
- Package Height: 0.31
- Package Weight: 0.02
Product info last updated on February 7, 2026 8:40am UTC
Category: Springs
