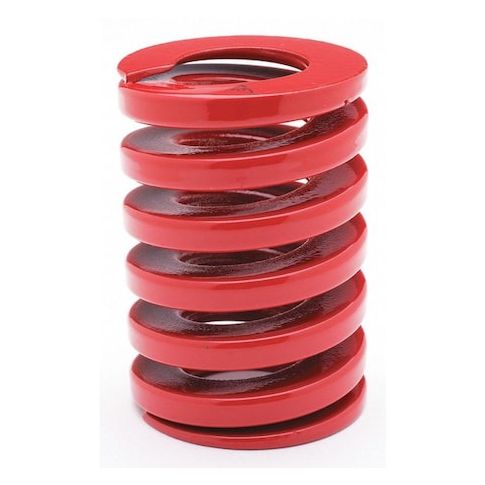

Die Spring, Red, Overall 4-15/16" L MPN:ASM050125
Die Spring, Red, Overall 4-15/16" L
This heavy-duty die spring is designed for demanding industrial applications, offering a high spring rate of 3 lb/in and a deflection of 0.13in under load. Made from oil-tempered chrome silicone, it provides excellent durability and resistance to corrosion. With a large outside diameter of 0.360in and a small outside diameter of 0.125in, it can be used in a variety of applications, including metal stamping, forming, and pressing. Its compact size and high load capacity make it ideal for use in tight spaces and high-production environments. It meets or exceeds JIS SWOSC-V and ASTM A877 standards.
Top product features:
- Oil Tempered Chrome Silicone construction
- Closed and Ground end type
- Deflection @ Load 0.13, Spring Rate 3 lb./in.
Top product applications:
- Die springs are used in various applications, including:
- Automotive suspension systems, where they help to absorb shocks and maintain vehicle stability
- Heavy machinery and equipment, such as presses and cranes, where they provide a reliable and consistent source of force
Die Spring, Extra Heavy Duty, Color Red, Oil Tempered Chrome Silicone, Finish Plain, Overall Length 4-15/16 In., Outside Dia. 2 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Deflection @ Load 0.13, Spring Rate 3 lb./in., Meets/Exceeds JIS SWOSC-V, ASTM A877
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 1.97
- Package Width: 4.92
- Package Height: 1.97
- Package Weight: 4.03
Product info last updated on April 23, 2026 5:13pm UTC
Category: Springs
