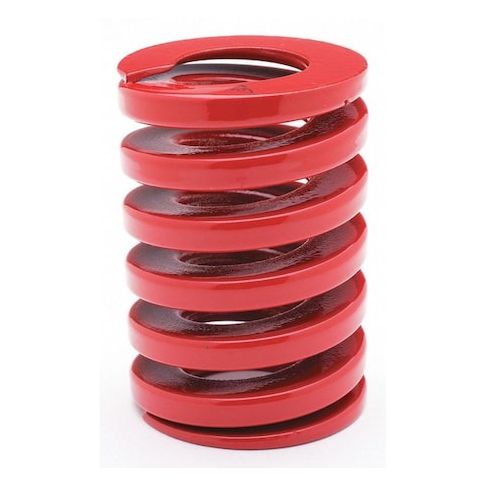

Die Spring, Red, Overall 1-13/16" L, PK5 MPN:ASM030030
Die Spring, Red, Overall 1-13/16" L, PK5
The Raymond Die Spring is a heavy-duty solution for various industrial applications. Its extra-heavy-duty design and oil-tempered chrome silicone construction provide exceptional durability and resistance to wear and tear. With a spring rate of 3 lb./in. and a deflection of 0.07, this spring is ideal for high-load applications such as die sets, presses, and other machinery. Its compact size and closed-ground design make it easy to integrate into tight spaces. Suitable for use in industries such as metalworking, automotive, and aerospace, the Raymond Die Spring offers reliable performance and long-lasting service.
Top product features:
- Oil Tempered Chrome Silicone construction for added durability
- Plain finish to reduce friction and improve spring performance
- Spring Rate of 3 lb./in. for controlled deflection and load management
Top product applications:
- Pneumatic cylinder components
- Automotive brake system components
- Machine tool components
Die Spring, Extra Heavy Duty, Color Red, Oil Tempered Chrome Silicone, Finish Plain, Overall Length 1-13/16 In., Outside Dia. 1-3/16 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Deflection @ Load 0.07, Spring Rate 3 lb./in., Meets/Exceeds JIS SWOSC-V, ASTM A877, Package Quantity 5
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 6
- Unit of Measure: PK
- Package Length: 1.18
- Package Width: 1.18
- Package Height: 1.18
- Package Weight: 0.35
Product info last updated on February 21, 2026 8:58pm UTC
Category: Springs
