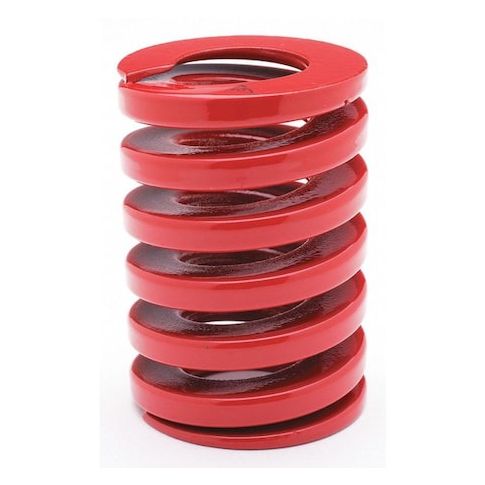

Die Spring, Red, Overall 2-3/16" L, PK5 MPN:ASM035055
Die Spring, Red, Overall 2-3/16" L, PK5
The Raymond Die Spring is a heavy-duty, oil-tempered chrome silicone spring designed for high-stress applications. Its large outside diameter and closed-end design provide a robust and durable solution for die sets, presses, and other equipment. With a spring rate of 1 lb/in and a deflection of 0.08, this spring is ideal for applications requiring precise control and stability. Its red color and compact size make it easy to integrate into existing systems. Suitable for use in industries such as metal stamping, forging, and manufacturing, this spring is a reliable choice for demanding environments.
Top product features:
- Oil Tempered Chrome Silicone construction provides durability and resistance to corrosion.
- Closed and Ground End Type ensures secure and reliable attachment to dies.
- 1 lb./in. Spring Rate provides a consistent and controlled deflection under load.
Top product applications:
- Heavy-duty door closer
- Automotive engine components
- Industrial machinery assembly
Die Spring, Extra Heavy Duty, Color Red, Oil Tempered Chrome Silicone, Finish Plain, Overall Length 2-3/16 In., Outside Dia. 1-3/8 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Deflection @ Load 0.08, Spring Rate 1 lb./in., Meets/Exceeds JIS SWOSC-V, ASTM A877, Package Quantity 5
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 3
- Unit of Measure: PK
- Package Length: 1.38
- Package Width: 2.17
- Package Height: 1.38
- Package Weight: 0.87
Product info last updated on March 11, 2026 1:04pm UTC
Category: Springs
