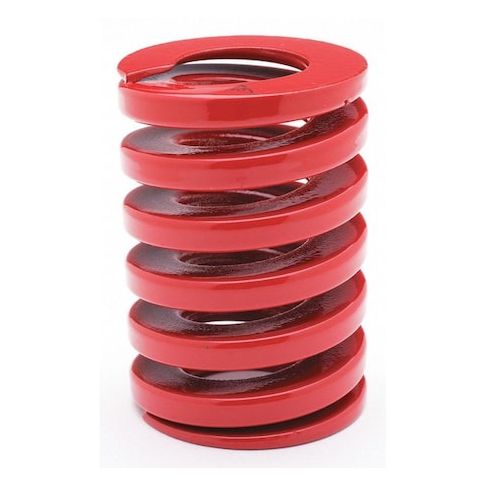

Die Spring, Red, Overall 2-3/16" L, PK5 MPN:ASM027055
Die Spring, Red, Overall 2-3/16" L, PK5
The Raymond Die Spring is a heavy-duty, oil-tempered chrome silicone spring designed for demanding applications. Its extra heavy-duty construction and high spring rate of 7 lb./in. make it ideal for use in industries such as manufacturing, automotive, and aerospace. The spring's closed and ground end type provides a secure fit in dies and molds, while its red color makes it easy to identify. With a compressed deflection of 0.21 and a package quantity of 5, this spring is perfect for use in production lines, presses, and other machinery where high force is required.
Top product features:
- Oil Tempered Chrome Silicone construction
- Extra Heavy Duty design
- Deflection @ Load 0.21 for precise movement
Top product applications:
- Die Springs are used in various applications including:
- Automotive industry for clutch and brake systems
- Machine tools for clamping and holding workpieces
Die Spring, Extra Heavy Duty, Color Red, Oil Tempered Chrome Silicone, Finish Plain, Overall Length 2-3/16 In., Outside Dia. 1-1/16 In., Wire Dia. N/A, End Type Closed and Ground, Large Outside Dia. 0.360 In., Small Outside Dia. 0.125 In., Compressed Length N/A, Deflection @ Load 0.21, Spring Rate 7 lb./in., Meets/Exceeds JIS SWOSC-V, ASTM A877, Package Quantity 5
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 5
- Unit of Measure: PK
- Package Length: 1.06
- Package Width: 2.17
- Package Height: 1.06
- Package Weight: 0.52
Product info last updated on February 5, 2026 3:32am UTC
Category: Springs
